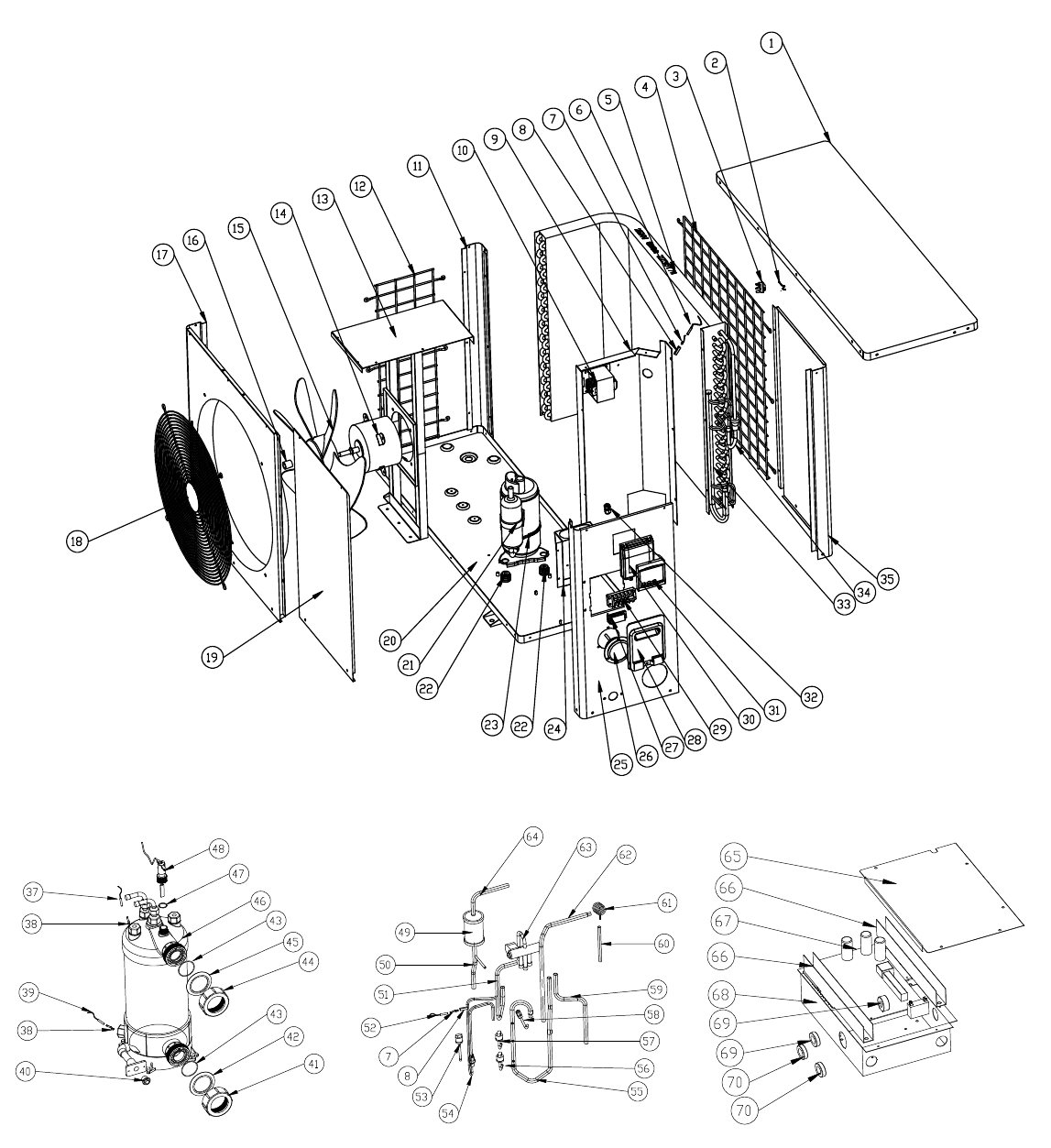

Beugel

Evaporator

XP16CSIE-POS-5

Coil temperature sensor TH2 plug (6x4)

XP16CSIE-POS-6

Sensor casing pipe

XP16CSIE-POS-8

Isolation panel

XP16CSIE-POS-9

Pillar

XP16CSIE-POS-11

Fan grid

XP16CSIE-POS-12

Fan motor bracket

XP16CSIE-POS-13

Fan motor 230V 80.6-2 90W

7021840

Fan blade 490mm x 125mm, 12mm hole clockwise

7010540

DC fan motor tube

XP16CSIE-POS-16

Left panel

XP16CSIE-POS-17

Ventilation grid

XP16CSIE-POS-18

Front housing panel

XP16CSIE-POS-19

Base tray

XP16CSIE-POS-20

Compressor

XP16CSIE-POS-21

Liquid reservoir

XP16CSIE-POS-22

Compressor heating belt 230V 35W 390mm

7020268

Anti-vibration hammer

XP16CSIE-POS-24

Front base tray

XP16CSIE-POS-25

Right panel

XP16CSIE-POS-26

Clip

XP16CSIE-POS-28

Saddle

XP16CSIE-POS-29

5-seat terminal

XP16CSIE-POS-30

Cable connector

XP16CSIE-POS-33

Gas release pipe

XP16CSIE-POS-34

Assembly distribution piping

XP16CSIE-POS-35

Back panel

XP16CSIE-POS-36

Water inlet temperature sensor clip

XP16CSIE-POS-38

Plug PP 1/2" male thread 10bar black

0121243

Blue rubber ring

XP16CSIE-POS-42

White rubber ring

XP16CSIE-POS-43

O-ring 48 x 3.1

XP16CSIE-POS-45

Titanium heat exchanger

7021847

Titanium PP housing flow switch

XP16CSIE-POS-47

Filter

XP16CSIE-POS-49

Pipe ( Filter to Liquid reservoir )

XP16CSIE-POS-50

4-way valve to reservoir

XP16CSIE-POS-51

Exhaust pipe

XP16CSIE-POS-54

Blue gas pipe

XP16CSIE-POS-55

Suction pipe

XP16CSIE-POS-58

Pipe ( 4-way valve to gas collecting pipe)

XP16CSIE-POS-59

Capillary to distribution piping

XP16CSIE-POS-60

Electronic expansion valve

XP16CSIE-POS-61

Pipe (Liquid reservoir to Capillary)

XP16CSIE-POS-62

4-way valve

XP16CSIE-POS-63

Pipe (Titanium exchanger to Filter)

XP16CSIE-POS-64

Electric box cover

XP16CSIE-POS-65

PC Board

XP16CSIE-POS-66

PC Board SH0200101-V1.5

7021835

Magnetic ring

XP16CSIE-POS-68

Magnetic ring

XP16CSIE-POS-69

Magnetic ring

XP16CSIE-POS-70
