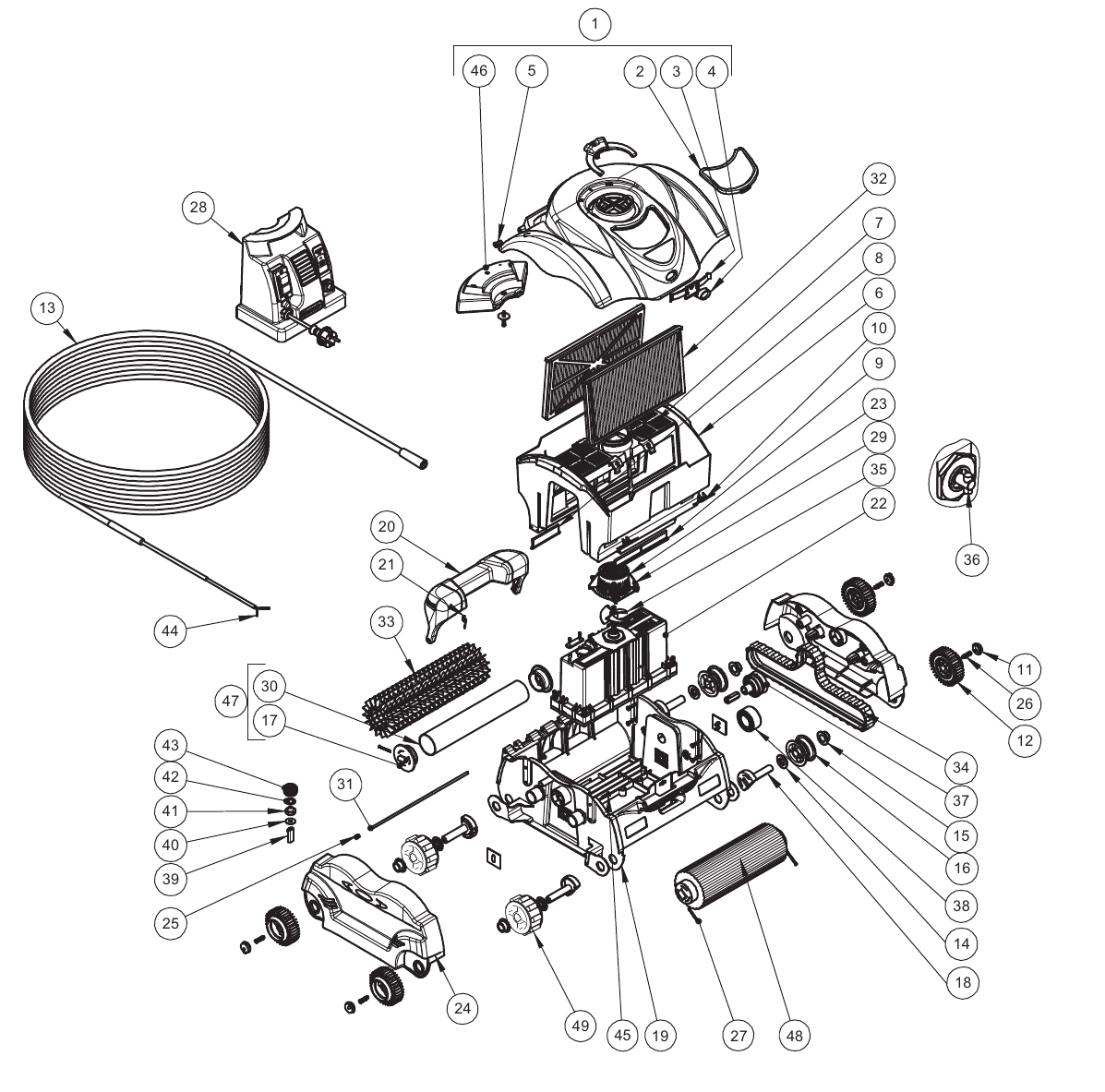

Ontluchtingsbuis

Button

HAYWARD-SHARKVAC-XL-POS-5

Housing, dome

HAYWARD-SHARKVAC-XL-POS-6

Door, filter bucket

HAYWARD-SHARKVAC-XL-POS-7

Flap, door small

HAYWARD-SHARKVAC-XL-POS-8

Flap, drain large

HAYWARD-SHARKVAC-XL-POS-9

Flap, rubber

HAYWARD-SHARKVAC-XL-POS-10

Cap, wheel rim

HAYWARD-SHARKVAC-XL-POS-11

Power cord assembly 50µF

7006300

Bushing 1W

HAYWARD-SHARKVAC-XL-POS-14

Bushing 2W

HAYWARD-SHARKVAC-XL-POS-15

Ring, drive

HAYWARD-SHARKVAC-XL-POS-16

Roller end

HAYWARD-SHARKVAC-XL-POS-17

Shaft

HAYWARD-SHARKVAC-XL-POS-18

Base

HAYWARD-SHARKVAC-XL-POS-19

Handle assembly

HAYWARD-SHARKVAC-XL-POS-20

Spring, handle

HAYWARD-SHARKVAC-XL-POS-21

Motor assembly

7006529

Panel, side

HAYWARD-SHARKVAC-XL-POS-24

Screw M4x10mm flat Torx

HAYWARD-SHARKVAC-XL-POS-25

Screw M7x25mm flat Torx

HAYWARD-SHARKVAC-XL-POS-26

Screw M5x8.5mm PT

HAYWARD-SHARKVAC-XL-POS-27

Screw M5x12mm pan Torx HD T-20

HAYWARD-SHARKVAC-XL-POS-29

Shaft, drive stainless steel

HAYWARD-SHARKVAC-XL-POS-31

Impeller

HAYWARD-SHARKVAC-XL-POS-35

Bearing, drive assembly

HAYWARD-SHARKVAC-XL-POS-37

Bearing, idler pulley

HAYWARD-SHARKVAC-XL-POS-38

Compression seal

7006536

Screw M5x20mm pan Torx HD T-20

HAYWARD-SHARKVAC-XL-POS-45

Side intake

HAYWARD-SHARKVAC-XL-POS-46

Tube wheel + roller end

HAYWARD-SHARKVAC-XL-POS-47

Ring, drive with rubber assembly

HAYWARD-SHARKVAC-XL-POS-49
