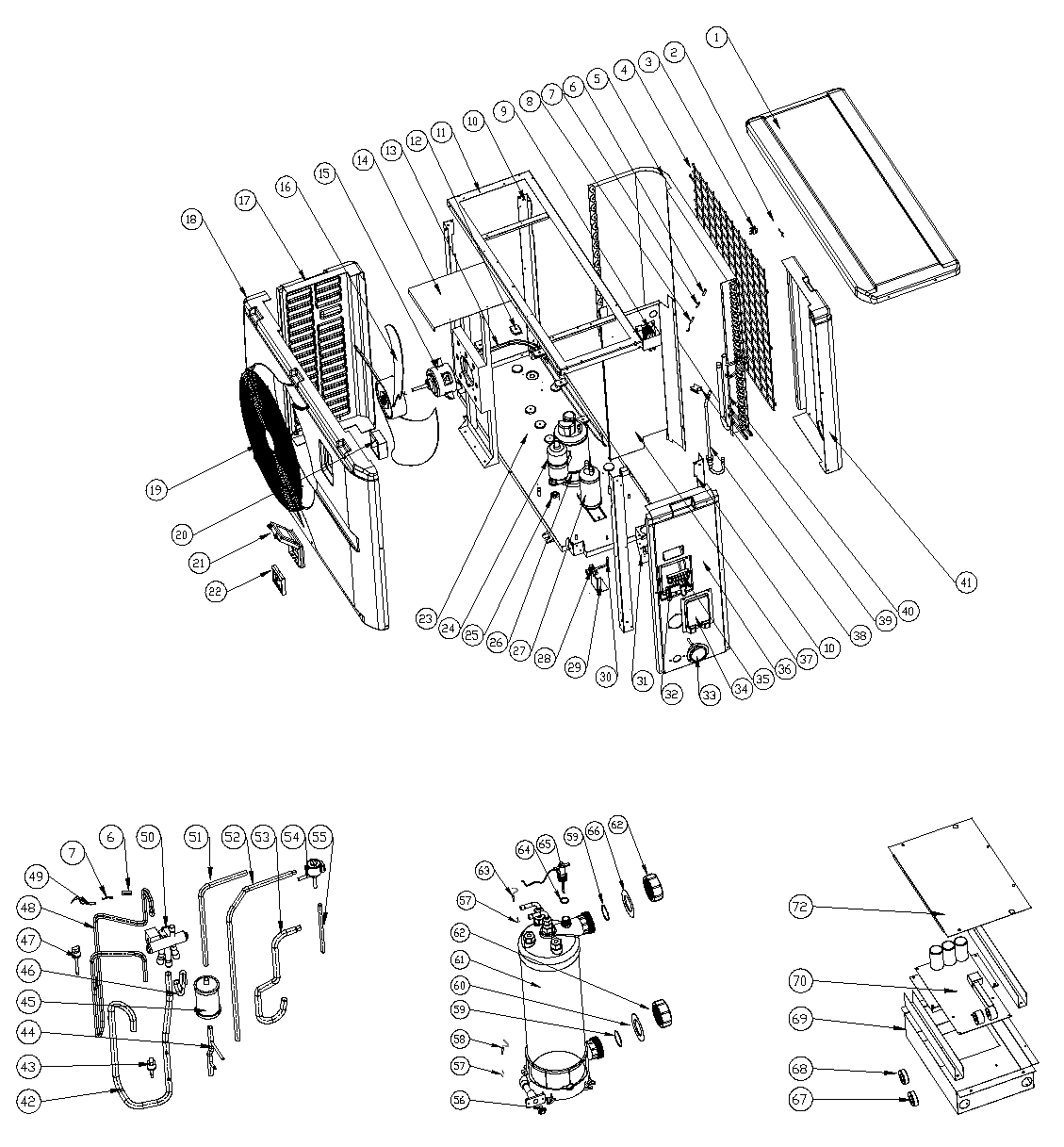

Ventilatorrooster

Back grid

HYDRO-PRO-Z19-32-POS-4

Cable for display inverter 5-wires 15V1

702203

Evaporator

HYDRO-PRO-Z19-32-POS-5

Water casing pipe

HYDRO-PRO-Z19-32-POS-6

Inner casing pipe

HYDRO-PRO-Z19-32-POS-7

Pipe temperature sensor TH2 plug (6x4)

702060

Spacer

HYDRO-PRO-Z19-32-POS-9

Pillar

HYDRO-PRO-Z19-32-POS-10

Upper frame

HYDRO-PRO-Z19-32-POS-11

Clip

HYDRO-PRO-Z19-32-POS-12

Evaporator heating belt 230V 58W 2000mm

702074

Fan motor bracket

HYDRO-PRO-Z19-32-POS-14

Front panel

HYDRO-PRO-Z19-32-POS-18

Fan suction grid

HYDRO-PRO-Z19-32-POS-19

Controller box

HYDRO-PRO-Z19-32-POS-20

Controller box

HYDRO-PRO-Z19-32-POS-21

Base tray

HYDRO-PRO-Z19-32-POS-23

Compressor MVB33FBPMC

HYDRO-PRO-Z19-32-POS-24

Anti-vibration hammer

HYDRO-PRO-Z19-32-POS-25

Liquid reservoir

HYDRO-PRO-Z19-32-POS-27

Globe valve

HYDRO-PRO-Z19-32-POS-28

Globe valve board

HYDRO-PRO-Z19-32-POS-29

Low pressure

HYDRO-PRO-Z19-32-POS-30

Terminal board

HYDRO-PRO-Z19-32-POS-31

N/A

HYDRO-PRO-Z19-32-POS-32

Terminal cover

HYDRO-PRO-Z19-32-POS-34

T-seal terminal

HYDRO-PRO-Z19-32-POS-35

Right panel

HYDRO-PRO-Z19-32-POS-36

Bottom panel

HYDRO-PRO-Z19-32-POS-37

Distribution piping

HYDRO-PRO-Z19-32-POS-38

Rubber sealing block

HYDRO-PRO-Z19-32-POS-39

Gas collecting piping

HYDRO-PRO-Z19-32-POS-40

Left panel

HYDRO-PRO-Z19-32-POS-41

Back gas piping

HYDRO-PRO-Z19-32-POS-42

Pipe (Filter to Liquid reservoir)

HYDRO-PRO-Z19-32-POS-44

Filter

HYDRO-PRO-Z19-32-POS-45

High pressure switch 3.6 - 4.4Mpa

HYDRO-PRO-Z19-32-POS-47

Exhaust temperature sensor TH3 plug (6x4)

HYDRO-PRO-Z19-32-POS-49

4-way valve

HYDRO-PRO-Z19-32-POS-50

Pipe (from heat exchanger to Filter)

HYDRO-PRO-Z19-32-POS-51

Pipe (Liquid reservoir to EEV)

HYDRO-PRO-Z19-32-POS-52

Pipe (4-way valve to Evaporator)

HYDRO-PRO-Z19-32-POS-53

Electronic expansion valve

HYDRO-PRO-Z19-32-POS-54

Capillary for pressure test

HYDRO-PRO-Z19-32-POS-55

Water temperature sensor T5

HYDRO-PRO-Z19-32-POS-57

O-ring

HYDRO-PRO-Z19-32-POS-59

Blue rubber ring

HYDRO-PRO-Z19-32-POS-60

Titanium heat exchanger Z19/32

7025165

Sealing ring for water flow switch

HYDRO-PRO-Z19-32-POS-64

Red rubber ring

HYDRO-PRO-Z19-32-POS-66

Magnetic ring

HYDRO-PRO-Z19-32-POS-67

Magnetic ring

HYDRO-PRO-Z19-32-POS-68

Electric box

HYDRO-PRO-Z19-32-POS-69

N/A

HYDRO-PRO-Z19-32-POS-71

Electric box cover

HYDRO-PRO-Z19-32-POS-72
