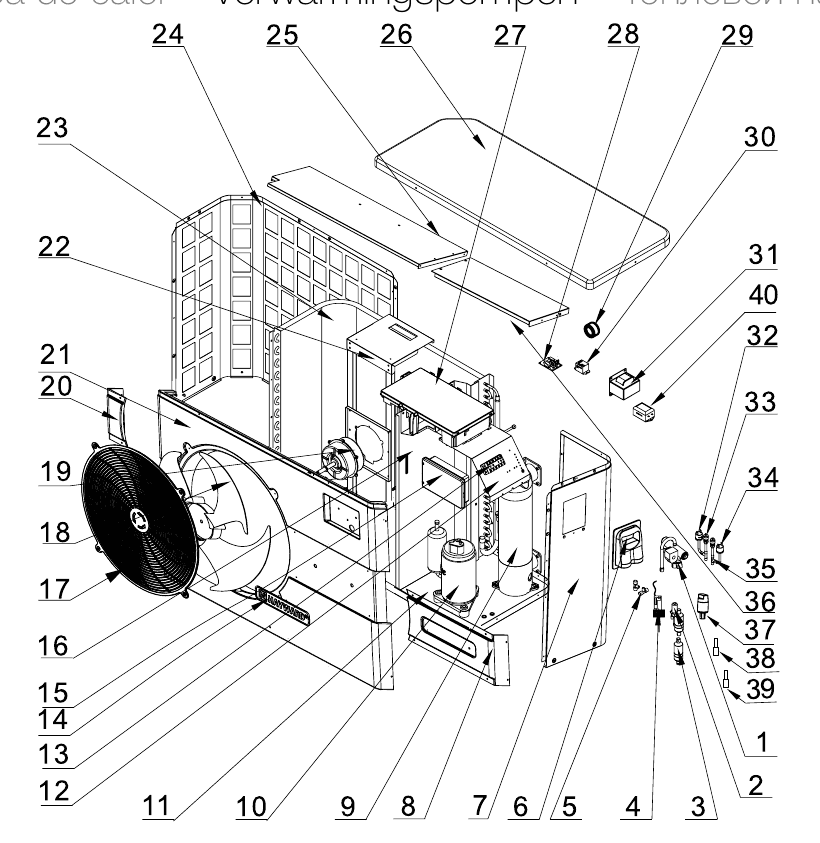

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward ENP14M
49 gedocumenteerde onderdelen voor dit model.
HWX82000243
4 way valve
HWX72200148CP1
Compressor
HWX72200145CP2
Compressor
HWX83000044
Compressor aspiration sensor
HWX83000026
Compressor discharge probe 50 k - 660 mm
HWX9400408882
Connector T
HWX30900088
Decorative left panel
HWX30900089
Decorative right panel
HWX83000051
De-icing sensor
HWX81000017
Electronic expansion valve
HWX81000015
Electronic expansion valve
HWX81000016
Electronic expansion valve
HWX30002257
EMC Filter
HWX30700456
Evaporator grid
HWX05000044
Evaporator with lamellas
HWX05000045
Evaporator with lamellas
HWX27000041
Fan
HWX3000220169
Fan protection
HWX320041444
Filter (Ø9.7-Ø9.7)
HWX30900087
Front panel
HWX200023096
Hayward Logo
HWX20013605
High pressure switch
HWX2000360157
Low pressure switch
HWX26000042
Motor
HWX20001461
O-ring (Ø11x1.7)
HWX2000360123
Pressure sensor
HWX20041437
Pressure sensor
HWX30900029
Protection cover
HWX940040888297
Relay 20A 50Hz 5.2W
HWX30700455
Right panel
HWX2000140150
Schrader 7/16 screw
HWX2000140151
Schrader cap
HWX20001460
T-Connector
HWX83000049
Temperature sensor Air 5 k - 350 mm
HWX940040887
Terminal block 2 connections
HWX940040888
Terminal block 5 connections
HWX06000074
Titanium PVC Condenser
HWX72300009
Titanium PVC Condenser
HWX06000075
Titanium PVC Condenser
HWX72300010
Titan/PVC condenser
HWX30109020806
Top cover
HWX53000069
Touch screen color
HWX92600008
Transformer 230V - 12V
HWX92600007
Transformer 230V - 7.5V
HWX53000012
Water flow detector
HWX53000068
Water flow detector
HWX83000052
Water inlet sensor 5 k - 850 mm
HWX83000050
Water outlet sensor 5 k - 410 mm
HWX84100049
Winter cover
