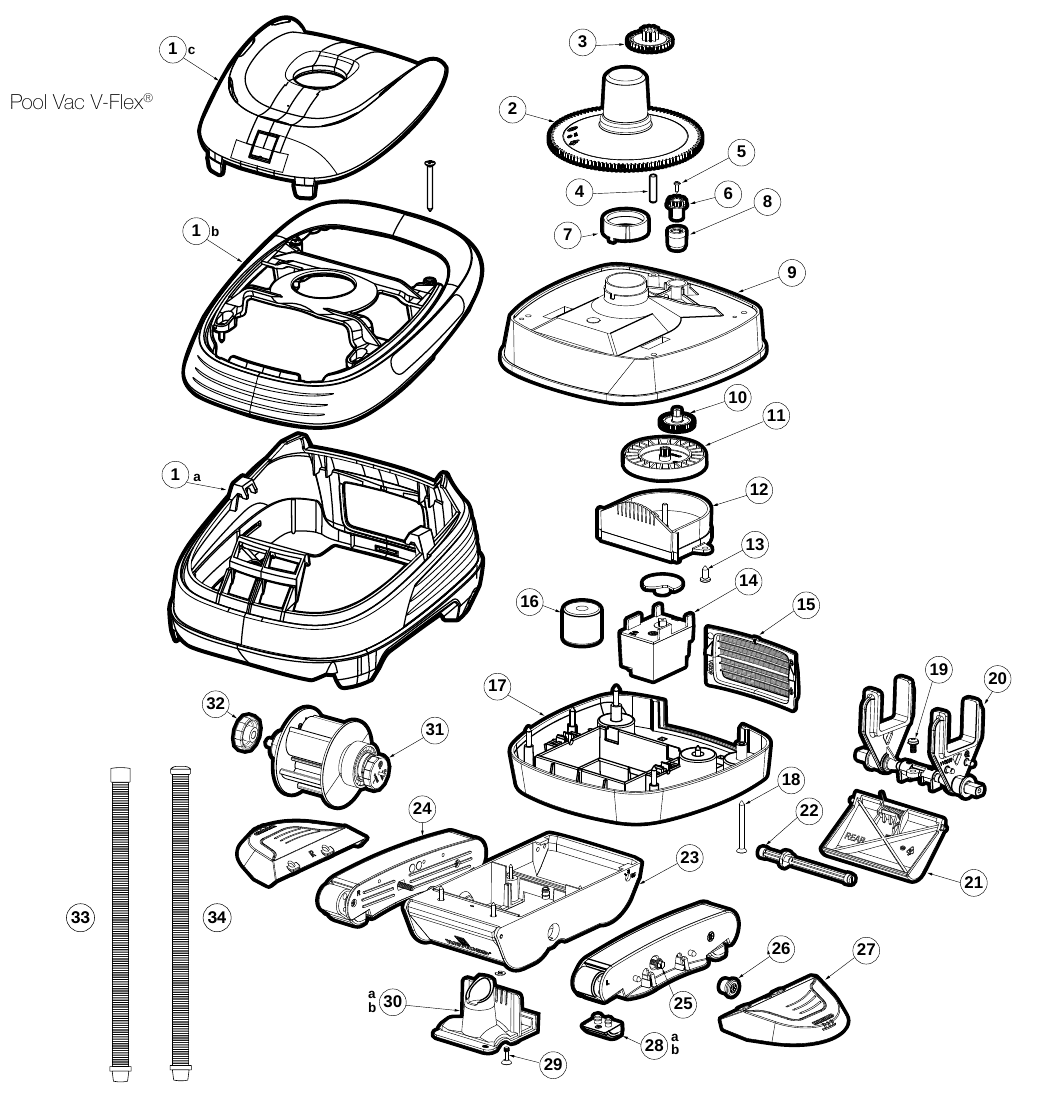

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward V-Flex
40 gedocumenteerde onderdelen voor dit model.
AXV313
Body Screw
AXV314P
Captive screw with clip
HSXV0015SAC-237
Concrete
HSXV0014SAC-237
Concrete
AXV070
Cone Gear
AXV306
Cone Gear Bushing
WX101BBF
Connecting hose
AXV031B
Flap Adjuster
AXV013
Float
HSXV0301DSA
Frame kit
AXV406P
Gear Box Screw
AXV080R-237
Grille
AXW560
Hose weight
AXV001SA-237
Intermediary Lid
AXV301
Intermediate Gear
AXV309
Intermediate Gear Shaft
AXV413P
Liner
AXV230D-237
Lower body
HSXV450C237
Lower body
WX101BBP
Main hose 1m - Black/Blue
AXV064
Medium turbine
AXV062C
Medium Turbine
AXV009
Medium Turbine Case with Axle
AXV064A
Medium Turbine Drive Mechanism
AXV417-237
Pod Kit
V074P
Regulator
W594P
Regulator
AXV008P
Screw for Gear Box
AXW009CP
Skimmer cone
AXV303
Spindle Gear
AXV068
Spindle Gear Screw
HSXV001SA-236
Superior Lid
HSXV0017SA-237
Superior Lid
HSXV060R237
Top medium turbine
HSX304060
Turbine shaft retainer
HSXV0304DSAC
Turbine with bearing
W40099WP
Vac Lock connector
AXV414B
Vinyl liner
AXV604-237
White Pod
AXV434-237
White Pod Shoe Kit
