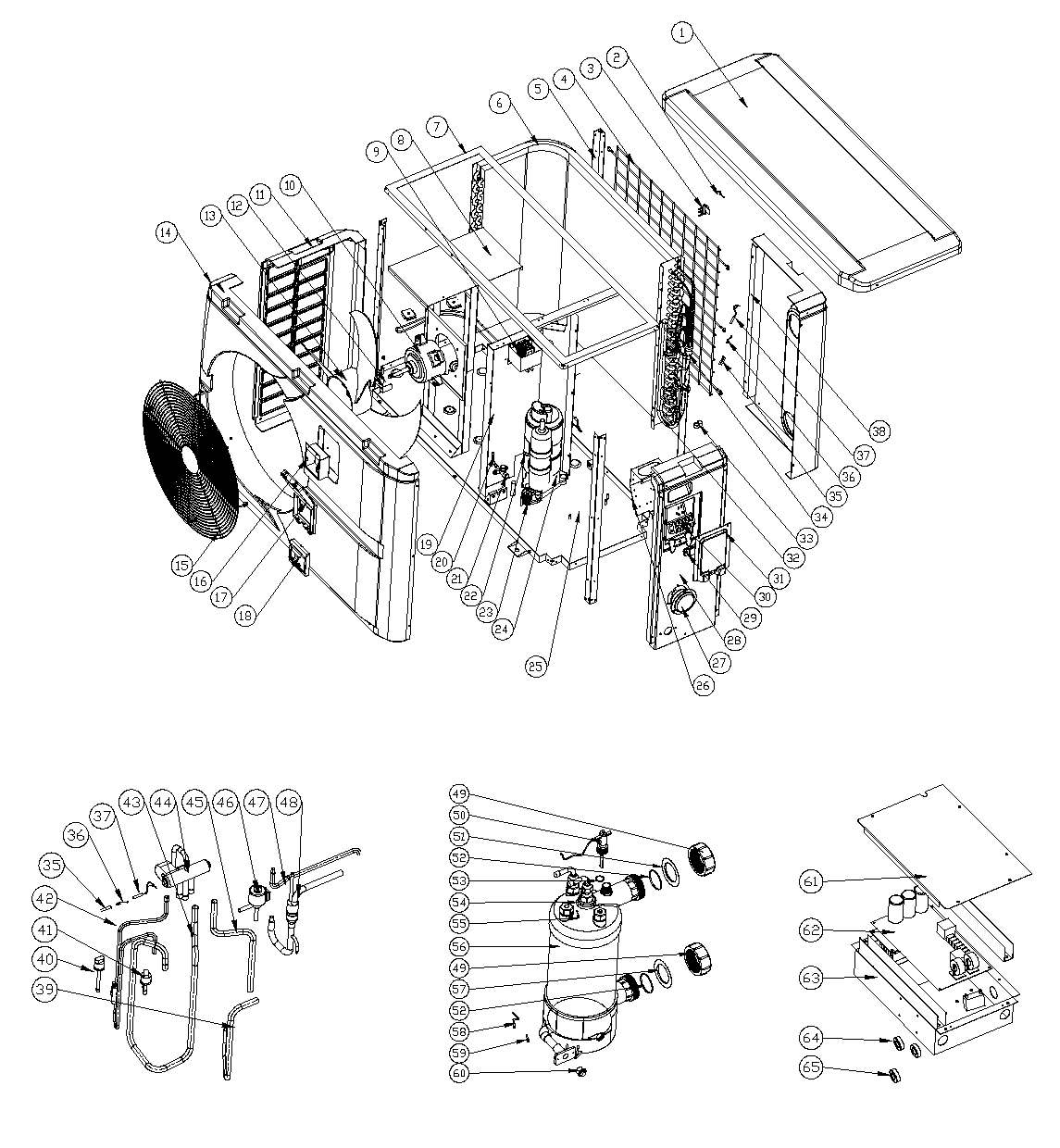

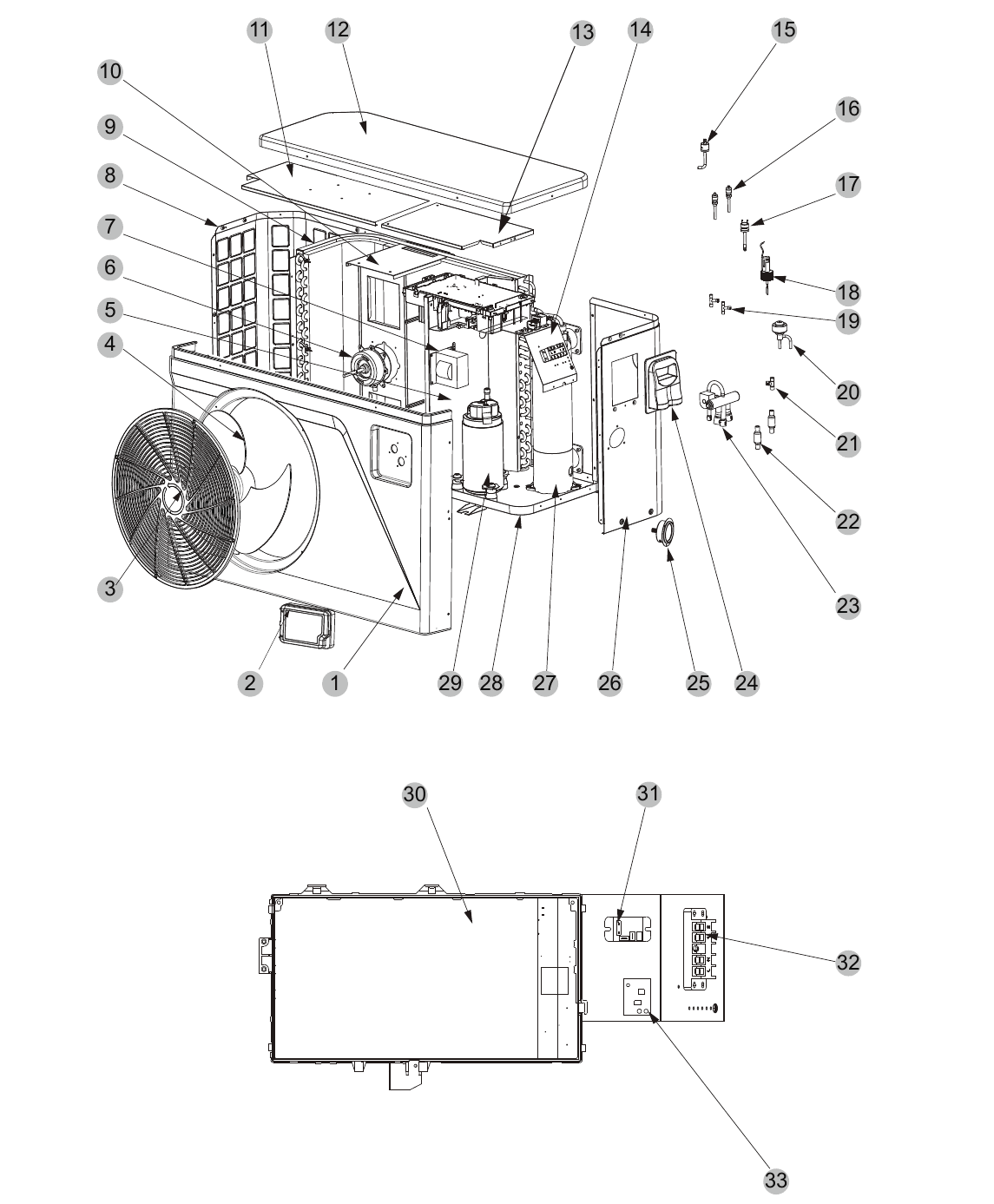

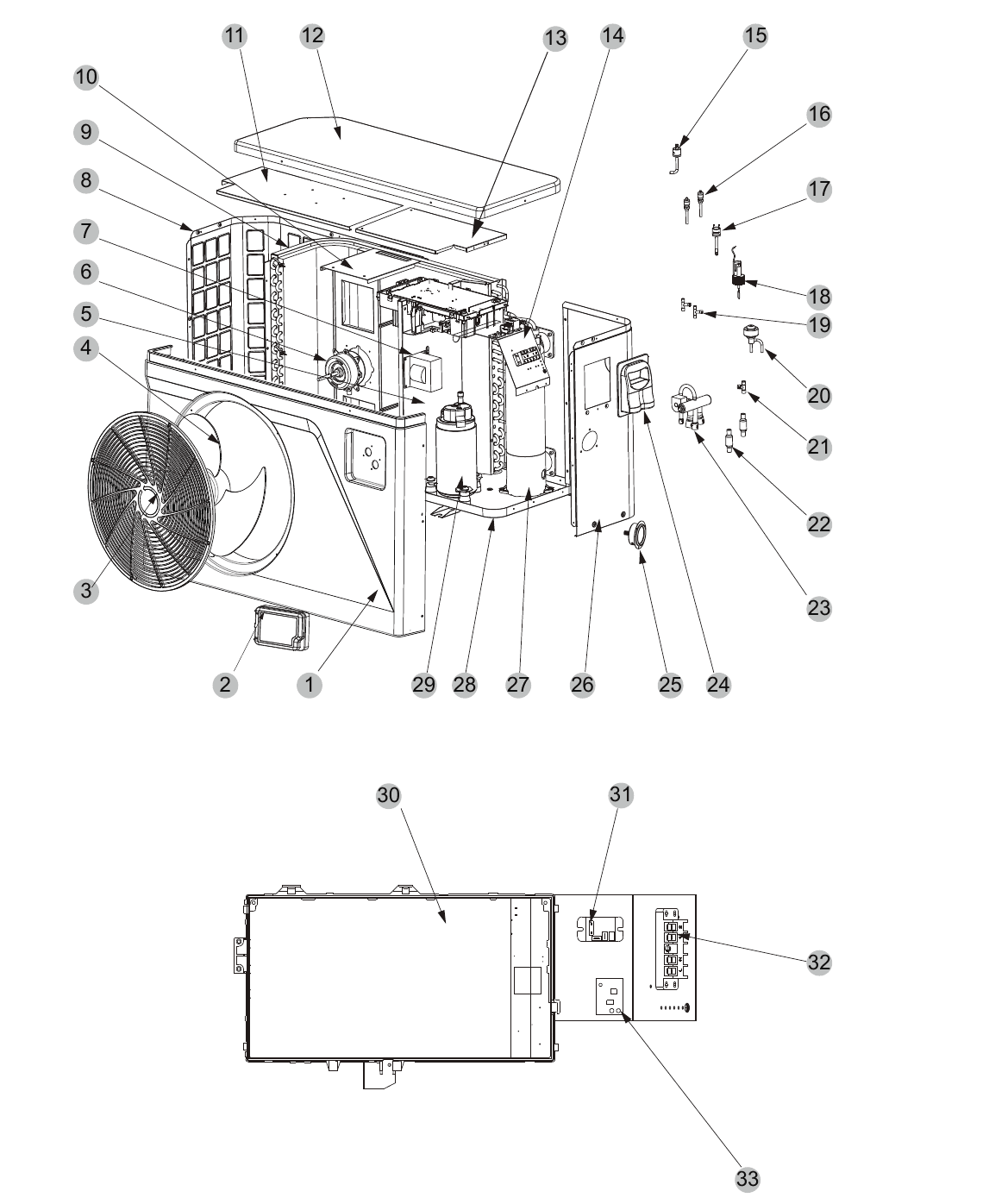

Onderdelen voor Hydro-Pro 32
123 gedocumenteerde onderdelen voor dit model.
7029497
10m+1 extension cable + housing Hydro Pro inverter PIV
PX30-POS-U1
3-bit wiring block
PX7-32-POS-23
3-way connection
PX7-32-POS-21
3-way valve
7011019
3-way wire connector
PX30-POS-27
4-way reverse valve
PX7-32-POS-25
4-way reverse valve
7011025
5-way wire connector
7029493
AC1004 PCB controller 40000-430227+302020-0000002B PIV 30T/32
PX30-POS-44
AC contactor (compressor)
7024943
Axial fan motor 70W 5M/S-A
PX30-POS-9
Back panel
7021541
Capacitor C/2 10uF/450V 1000h insert
7029485
Centralized controller 82300052 + 82400021 PIV 7/32
PX7-32-POS-30
Chassis
PX30-POS-30
Chassis
7020268
Compressor heating belt 230V 35W 390mm
7025155
Compressor heating belt 230V 35W 430mm plug (8x4)
PX30-POS-31
Compressor MVB42FCBMC-L
7029486
Compressor SVB140FCAMC(Mitsubishi)
7029487
Compressor SVB140FCAMC(Mitsubishi)
PX7-32-POS-31
Compressor SVB140FCAMC(Mitsubishi)
7029489
Compressor SVB220FLGMC-L(Mitsubishi)
PX30-POS-23
Connected cover
7025263
Contr. box display inverter Z series TUV1
PX7-32-POS-16
Copper pipe 6x2mm 45bar 1/2
7024881
Copper pipe sensor(50K)
7024981
Copper pipe sensor(50K)
PX30-POS-16
Copper tube dia.8th 40mm 1/2
PX30-POS-43
Cover of explosion-proof box
7024940
Driver board P20X/26X M-series
7024941
Driver board P20X/35X T-series
PX30-POS-13
Electrical box (1)
PX30-POS-41
Electrical box (2)
PX30-POS-12
Electrical box cover
PX30-POS-38
Electric box fixing board
PX7-32-POS-22
Electronic expansion valve
PX30-POS-22
Electronic expansion valve
PX30-POS-8
Evaporator
PX7-32-POS-9
Evaporator
7020274
Evaporator heating belt 230V 65W 2000mm
7024867
Exhausted temperature sensor 50K
PX30-POS-45
Explosion-proof box
7024944
Fan blade 470mmx160mm, 10mm hole anticlockwise
7021815
Fan blade 496mm x 150mm, 12mm hole anticlockwise
7024880
Fan blade 500mm x 145mm, 10mm hole anticlockwise
7021816
Fan blade 514mm x 148mm, 10mm hole anticlockwise
7024879
Fan blade D510mm x 134mm, 7mm hole anticlockwise
7029495
Fan motor 40W ZWS40 - E51
PX7-32-POS-10
Fan motor bracket
PX30-POS-7
Fan motor bracket
7021812
Fan motor ZWB37B002B 120W
PX7-32-POS-8
Fan protection net
7029494
Fan protection net
7025129
Fan speed control plate P26X/35X series
PX7-32-POS-24
Filter
PX30-POS-24
Filter (1)
PX30-POS-25
Filter (2)
PX30-POS-32
Fluid reservoir
PX7-32-POS-1
Front frame
PX30-POS-1
Front panel
PX30-POS-2
Glass display CM404
7011008
High pressure switch 3.2MPa/4.4MPa
7024793
High pressure switch 3.6 – 4.2Mpa
PX7-32-POS-26
Junction box body
PX7-32-POS-14
Lateral box support plate
7021826
LED display Inverter SHHCLEDV2MM101
7024794
Low pressure switch 0.1 - 0.2Mpa
7024791
Low pressure switch 0.1 – 0.3Mpa
7011009
Low pressure switch 0.3MPa/0.15MPa
7025311
Main board FXB1-2
7025158
Main board HWM1W-1200 IBD3R3A
PX30-POS-34
Middle separation panel
PX7-32-POS-5
Middle septum
PX30-POS-14
Needle valve(1)
7029491
P10004 PCB controller 20000-430227+302020-0000002B PIV 25T/32
PX7-32-POS-33
PCB
7022061
PCB - Printed circuit board Z-series 15V1
7020260
Pipe temperature sensor TH2 plug (6x4)
PX7-32-POS-3
Plastic fan net
0121241
Plug 1/4" outer thread 10bar black
7025310
Pressure gauge 0-65bar R32
7026259
Pressure meter 0-55bar gas R 32 (-15°C)
PX30-POS-6
Reactance
PX30-POS-37
Relay
PX7-32-POS-7
Resistance
PX30-POS-28
Right panel
7024875
Right side of the plate
PX7-32-POS-28
Right side of top plate
PX30-POS-U4
Rubber feet Ø50*47*H2*9
7025126
Sequence controller plate P20X/26X/35X T series
7033048
Supporting panel
PX30-POS-33
Support plate
7029492
TC1004 PCB controller 40000-430227+302020-0000002B PIV 30/32
7024951
Temperature sensor(50K)
7011007
Temperature sensor(5K)
PX30-POS-40
Three-seat connector
PX30-POS-21
Three-way valve
7024874
Titanium heat exchanger P8/32
7024876
Titanium heat exchanger PIV 21/32
7024878
Titanium heat exchanger PIV 25/32
7025130
Titanium heat exchanger PIV 30/32
7029496
Titanium heat exchanger PIV 7/32
7025166
Titanium heat exchanger R32/32
7025162
Titanium heat exchanger Z11/32
7025163
Titanium heat exchanger Z14/32
7020259
Top cover
7033050
Top lid 1115 x 427 mm
PX30-POS-11
Top lid 1115 x 430 mm
PX7-32-POS-11
Top support plate(1)
7033047
Top support plate(2)
PX7-32-POS-13
Top support plate(2)
7025156
Transformer BV0381W-5FA01B015R3A
7025157
Transformer YH3031W-SE00 IB020R3A
0100432
Union 50 x 1 1/2"
7014126
Water connection set 50mm compression type ECO & Flotide
7020257
Water flow switch VH-2 plug (9x27mm)
7020167
Water flow switch VH-2 plug (9x7mm)
7006471
Water flow switch with glue adapter 32 mm
7020261
Water inlet temperature sensor TH3 plug (6x4)
7020263
Water in temperature sensor TH6 plug (6x4)
7020262
Water out temperature sensor TH5 plug (6x4)
7025374
Winter cover L*B*H 117*50*127
