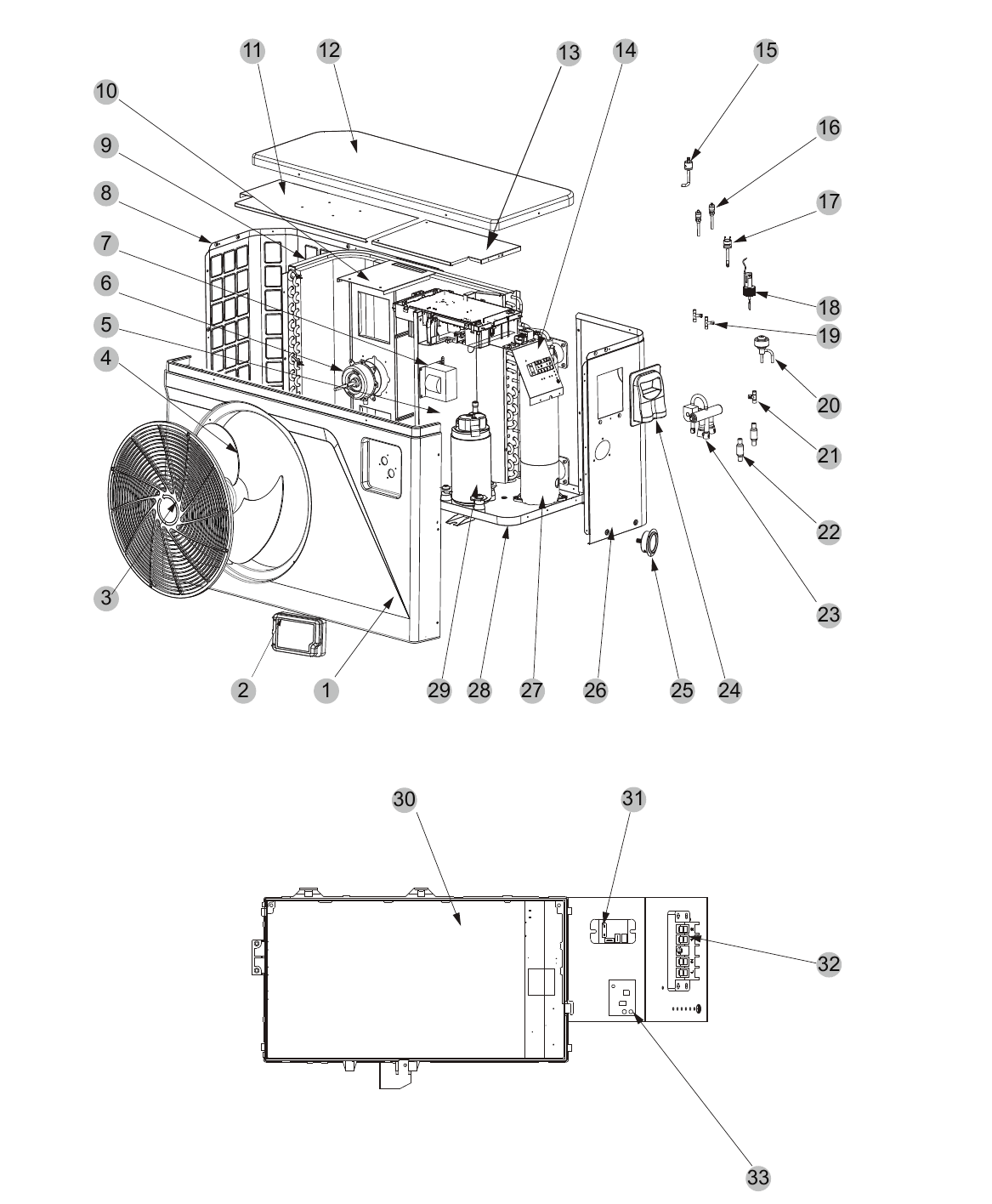

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hydro-Pro PX7
33 gedocumenteerde onderdelen voor dit model.
PX7-32-POS-23
3-way connection
PX7-32-POS-21
3-way valve
PX7-32-POS-25
4-way reverse valve
7029485
Centralized controller 82300052 + 82400021 PIV 7/32
PX7-32-POS-30
Chassis
PX7-32-POS-31
Compressor SVB140FCAMC(Mitsubishi)
PX7-32-POS-16
Copper pipe 6x2mm 45bar 1/2
7024881
Copper pipe sensor(50K)
PX7-32-POS-22
Electronic expansion valve
PX7-32-POS-9
Evaporator
7024879
Fan blade D510mm x 134mm, 7mm hole anticlockwise
7029495
Fan motor 40W ZWS40 - E51
PX7-32-POS-10
Fan motor bracket
PX7-32-POS-8
Fan protection net
7029494
Fan protection net
PX7-32-POS-24
Filter
PX7-32-POS-1
Front frame
7011008
High pressure switch 3.2MPa/4.4MPa
PX7-32-POS-26
Junction box body
PX7-32-POS-14
Lateral box support plate
7011009
Low pressure switch 0.3MPa/0.15MPa
PX7-32-POS-5
Middle septum
PX7-32-POS-33
PCB
PX7-32-POS-3
Plastic fan net
7026259
Pressure meter 0-55bar gas R 32 (-15°C)
PX7-32-POS-7
Resistance
PX7-32-POS-28
Right side of top plate
7011007
Temperature sensor(5K)
7029496
Titanium heat exchanger PIV 7/32
PX7-32-POS-11
Top support plate(1)
PX7-32-POS-13
Top support plate(2)
7033047
Top support plate(2)
7006471
Water flow switch with glue adapter 32 mm
