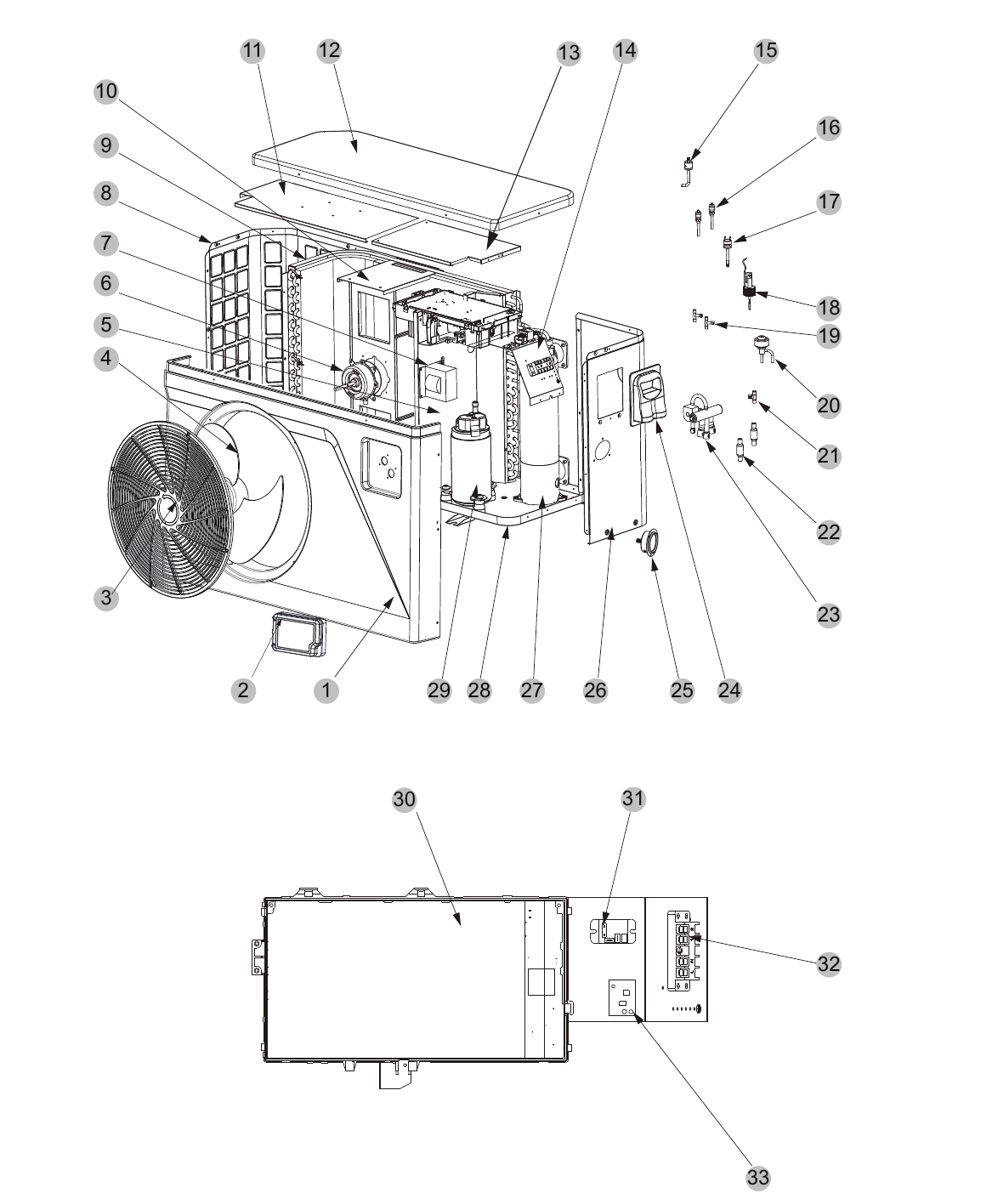

Fan blade 500mm x 145mm, 10mm hole anticlockwise

Fan protection net

7029494

Axial fan motor 70W 5M/S-A

7024943

Reactance

PX30-POS-6

Fan motor bracket

PX30-POS-7

Evaporator

PX30-POS-8

Back panel

PX30-POS-9

Fan speed control plate P26X/35X series

7025129

Supporting panel

7033048

Top lid 1115 x 430 mm

PX30-POS-11

Electrical box cover

PX30-POS-12

Electrical box (1)

PX30-POS-13

Needle valve(1)

PX30-POS-14

Copper tube dia.8th 40mm 1/2

PX30-POS-16

Temperature sensor(50K)

7024951

Three-way valve

PX30-POS-21

Electronic expansion valve

PX30-POS-22

Connected cover

PX30-POS-23

Filter (1)

PX30-POS-24

Filter (2)

PX30-POS-25

Pressure meter 0-55bar gas R 32 (-15°C)

7026259

4-way reverse valve

PX30-POS-27

Right panel

PX30-POS-28

Titanium heat exchanger PIV 30/32

7025130

Chassis

PX30-POS-30

Compressor MVB42FCBMC-L

PX30-POS-31

Flotec friction coupler with O-ring PVC-U 50 mm x 1 1/2" glue socket x male thread 10bar grey

0100432

Fluid reservoir

PX30-POS-32

Support plate

PX30-POS-33

Middle separation panel

PX30-POS-34

Driver board P20X/26X M-series

7024940

Relay

PX30-POS-37

Electric box fixing board

PX30-POS-38

TC1004 PCB controller 40000-430227+302020-0000002B PIV 30/32

7029492

Three-seat connector

PX30-POS-40

Electrical box (2)

PX30-POS-41

Sequence controller plate P20X/26X/35X T series

7025126

Cover of explosion-proof box

PX30-POS-43

AC contactor (compressor)

PX30-POS-44

Explosion-proof box

PX30-POS-45

Rubber feet Ø50*47*H2*9

PX30-POS-U4

Winter cover L*B*H 117*50*127

7025374
