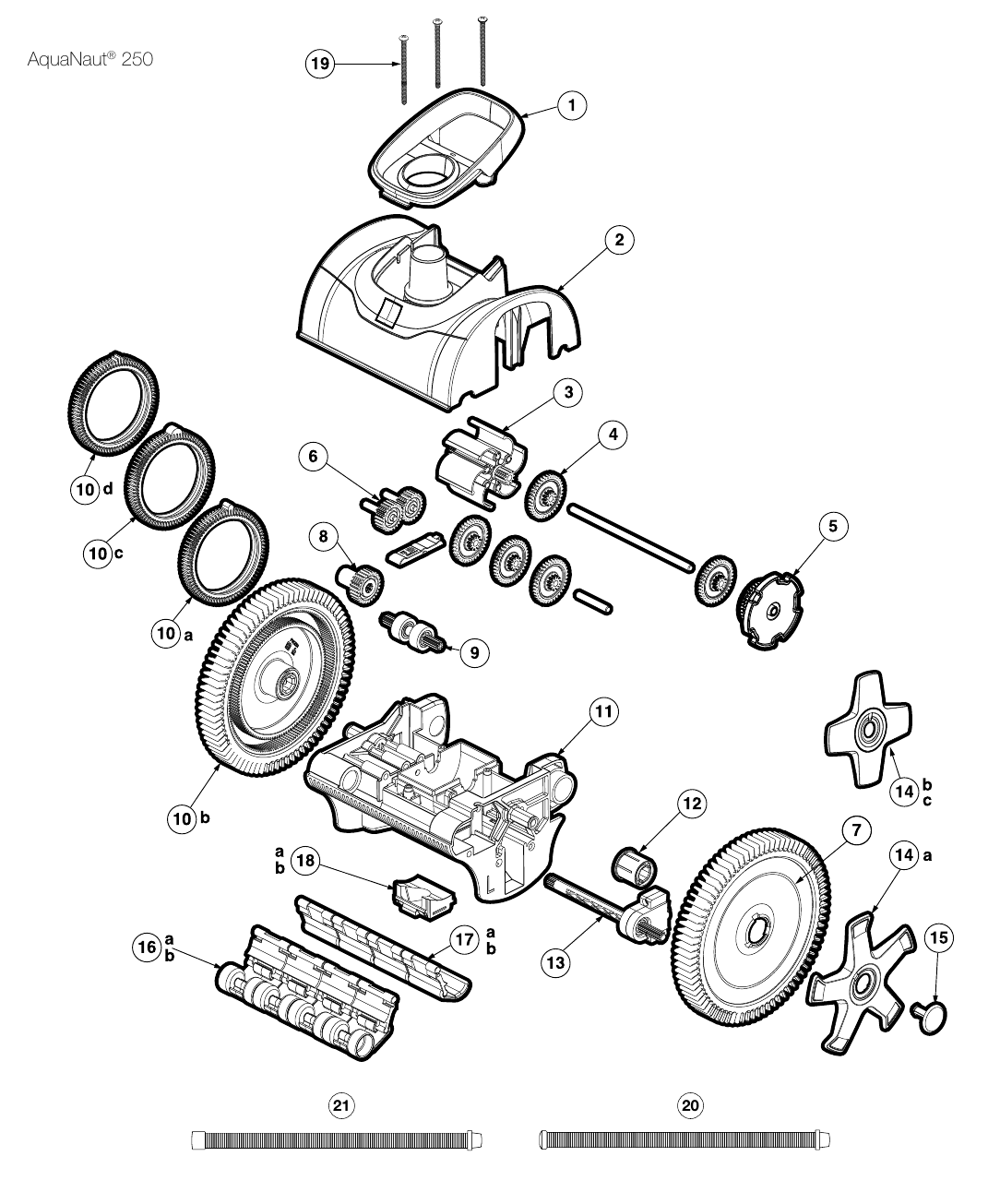

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward 250
33 gedocumenteerde onderdelen voor dit model.
PVXH036009
2x2 Cam
PVXE003PK2-237
4 spoke - Grey
PVXE003PK2-243
4 spoke - White
PVX011PK2-234
Blue Tyre
PVX005PK2-237
Boots Wheel Style
PVX679PK2
Ceramic & large obstacles
PVX012PK2-234
Concrete Tyre
PVGX99513
Connecting hose
W400BWHP
Connection Vac Lock
PVGX59672
Dark grey
PVXH007
Driver Gear (large)
PVXH008PK2
Driver Gear (small)
PVX079PK2-234
Fiberglass / Liner
PVXH019SA
Flow Valve
PVXH009PK5
Gearbox
A0W90P
Hose cuff
PVX011PK2
Hose float (x2)
PVX00M-236
Inlet Suction (medium)
PVX005-207
Inlet Suction (small)
PVX792SA-236
Lower body (Black)
V094P
Reducing valve
SCRX4012PK3
Screw
PVX0020BLK
Skimmer cone
PVX013BKPK4
Skirt (Black)
PVX013041BKPX4
Skirt (Blue)
PVX014BKPK4
Skirt Bracket (Black)
PVXH011SA
Steering Bracket Roller
PVXH002PK2-117
Top cover
PVXE002-234-01
Turbine
PVX627SXA
Turbine
PVX004PK2-237
Wheel Axle Plug
PVXH002PK2
Wheel Bearing
PVX051-236
Wheel Hub (medium)
