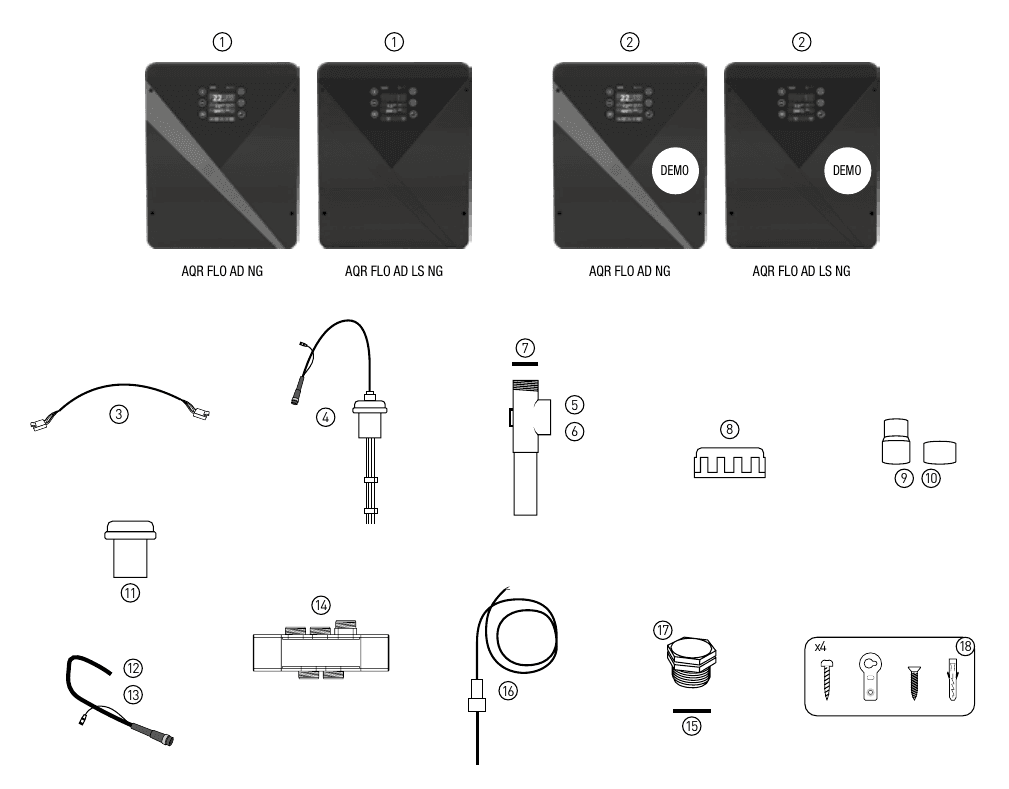

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward AGR-FLO-AD22NG
30 gedocumenteerde onderdelen voor dit model.
RCTC33
Adapter
RC563-50
Adapter 50-63 mm
RC575-50
Blind cell caps
RCBTT50-15M
Cable 1.5 m - RC50 / RC850
RCBTT50-1M
Cable 1 m - RC50 / RC850
REL2138
Cable for Touch Screen
RCB16
Cell 16 G/H LS
RC520
Cell holder
RC16
Cell holder
RC08
Cell holder
RC22
Cell holder
RC522-5
Cell nut
RC33(2016)
Cell with O-ring 33 g
RCB33(2016)
Cell with O-ring 3LS
CJTPSNG-FAD
Cover and screen
AC56
Flow detector
RL03158
Flow switch
CSLU
Kit for mounting on panel (4 screws with eyelet, 4 washers, 4 nuts)
RC530
O-ring
RL03074
O-ring
RED10
O-Ring
RC50
O-ring / RC22 / RC50
AC56J
Transparent probe holder
ACSTIP
Wall mounting kit for Electronic box (4 wall plugs, 4 wall mounting screws, 4 hanging eyelets and 4 eyelet mounting screws)
RC420
Winter cap
RC400
Wire extension
RCBTT33-15M
Wire extension 1,5m - 16, 22 & 33
RCBTT33-1M
Wire extension 1m - 16, 22 & 33
RCBTT33-25M
Wire extension 2,5m - 16, 22 & 33
RCBTT33-5M
Wire extension 5m - 16, 22 & 33
