Explosietekeningen

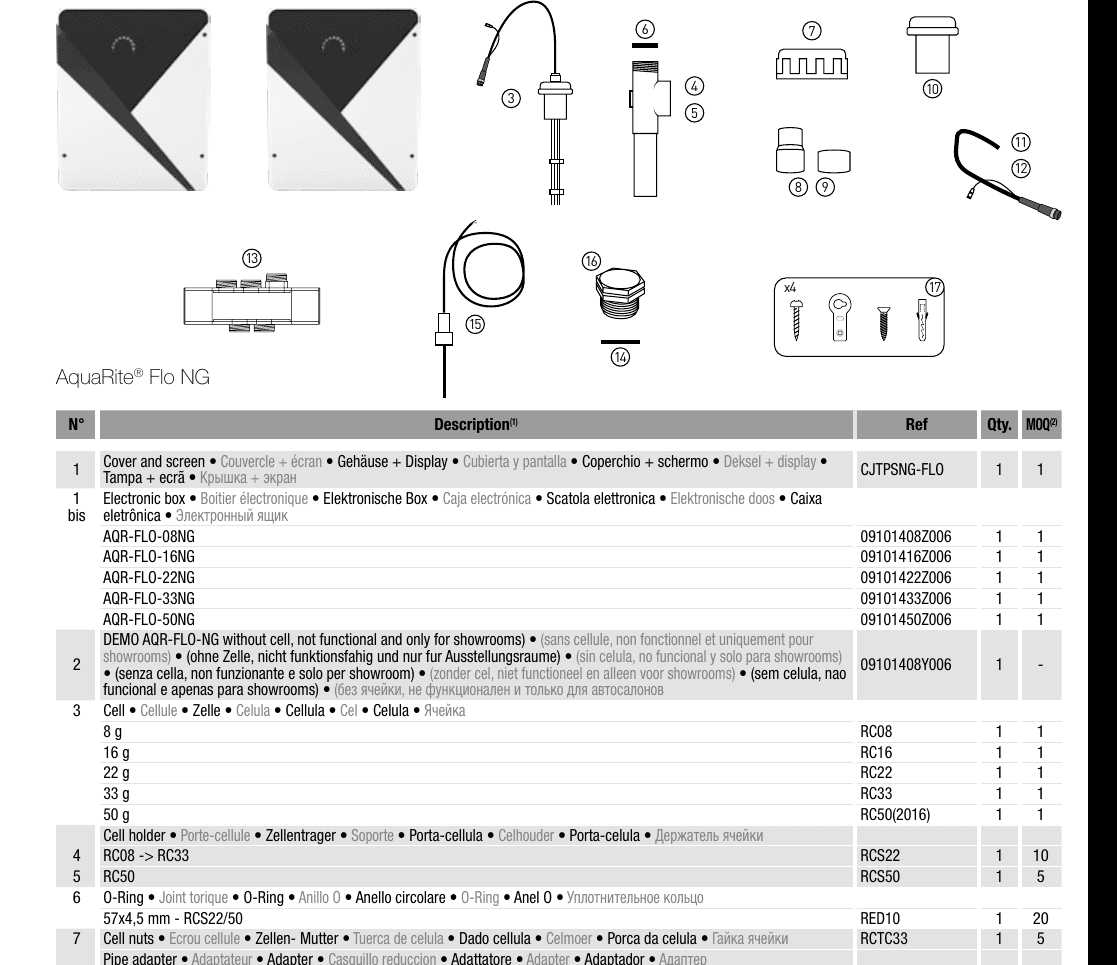

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward AQR-FLO-22NG
26 gedocumenteerde onderdelen voor dit model.
RCTC33
Adapter
RCACC33
Blind cell caps
RCSJ
Cable gland
RC50(2016)
Cell
RC22
Cell holder
RC33
Cell holder
RC16
Cell holder
RC08
Cell holder
RCS22
Cell holder nut
RCS50
Cell holder RCB16 / RCB22 / RCB33 / RCB50
CJTPSNG-FLO
Cover and screen
09101408Y006
DEMO AQR-FLO-NG without cell, not functional and only for showrooms
09101422Z006
Electronic box
RL03158
Flow switch
RL03074
O-ring
ACSJ074
O-Ring
RED10
O-Ring
RCSAD63-50
Pipe adapter
RCSAD50
Pipe adapter
ACSTP
Tap male thread 1/2” + o’ring
CSW
Wall mount fastening kit for Electronic box
RCBCBT33-15M
Wire extension
RCBCBT33-25M
Wire extension
RCBCBT33-5M
Wire extension
RCBCBTT50
Wire extension
RCBCBT33-1M
Wire extension
