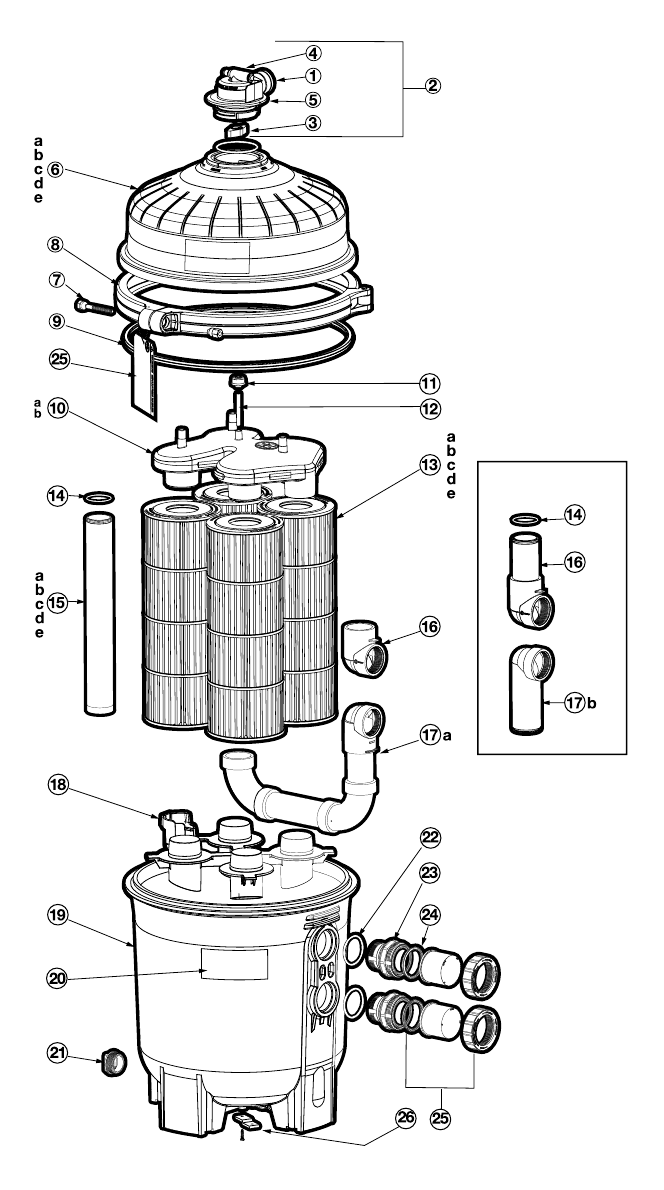

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward C3030
37 gedocumenteerde onderdelen voor dit model.
CX3020Z3
Air Relief Tube
CX3030D
Bottom Plate
CX481XRE
Cartridge
CX910XRE
Cartridge
CX880XRE
Cartridge
CX3020M
Cartridge connector
CX580XRE
Cartridge Element
CX1280XRE
Cartridge Element
DEX2421JKIT
Clamp assembly with spring assembly
DEX2421J2
Clamp Handle
SP1022CBLK
Drain Plug with O-ring
CX3030D3
Filter
DEX7220BTC
Filter head
DEX4820BTC
Filter head
DEX2420BTC
Filter head
DEX6020BTC
Filter head
DEX2422Z2
Filter Tank O-ring
CX3020F
Inlet Elbow
CX3020FB
Inlet pipe (from 09-2012)
CX3020FH
Inlet pipe (until 09-2012)
DEX2420MAR2
Manual air relief assembly
DEX2420MAR
Manual Air Relief Valve Nut
CCX1000V
Manual Air Relief with O-ring
SX200Z2
O-ring
DEX2420Z2A
O-ring (x2)
CX3031F10
Outlet pipe
CX3031F9
Outlet pipe
CX3031F6
Outlet pipe
CX3031F7
Outlet pipe
CX3031F8
Outlet pipe
ECX271Z81
Pressure Gauge
CX5030B
Top Collector
CX3030B
Top Collector
SPX3200UNKT50
Union Connector (x2) 50 mm
SPX3200UNKT63
Union Connector (x2) 63 mm
SPX3200UG
Union Gasket (T-seal) (x2)
SPX3200UNKIT
Union Nut (x2)
