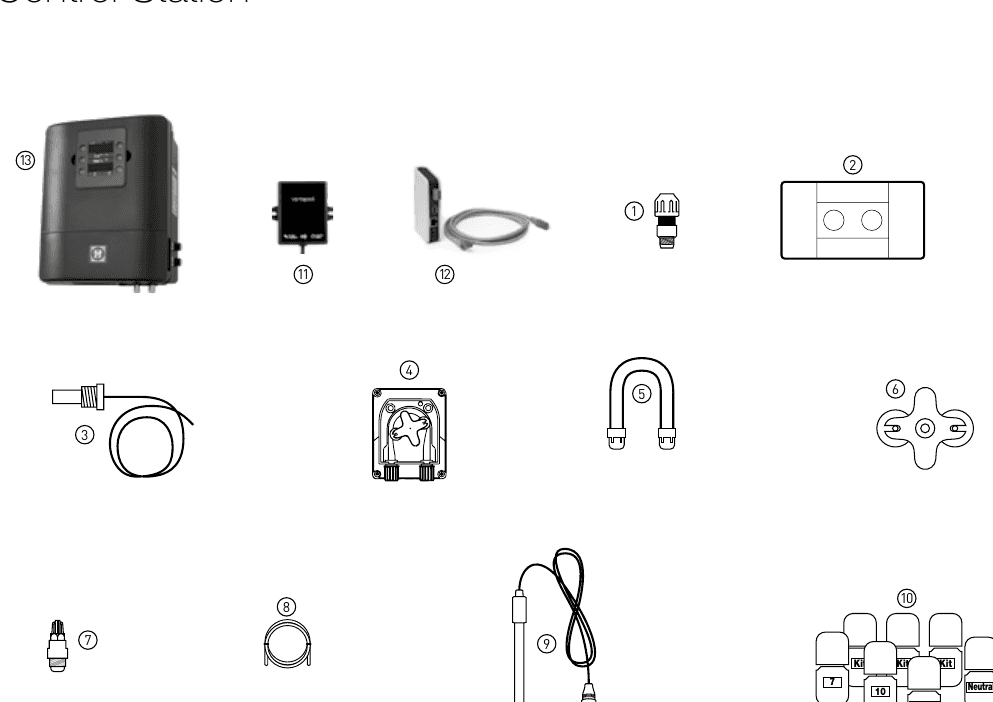

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward Control Station
26 gedocumenteerde onderdelen voor dit model.
KBPER
1,5 l/h 1 Bar peristaltic pump
RA01
1.5m pH probe double joint with BNC connector
RA12X
2,5m gold redox probe double joint 2,5m with BNC connector
RA01G
2.5m pH probe with BNC connector
RA12XG
2.5m redox probe gold glass with BNC connector
KV02
2 m wire for ground earthing+ ACS1 holder
ACSRX
Buffer
ACSPH7
Buffer solution
ACSPH10
Buffer solution
ACS1G
BY-PASS probe holder for 1 probe
GLX-ACS2G
BY-PASS probe holder for 2 probes
ACS3J
BY-PASS probe holder for 2 probes (flow detection + connection)
CST-CTL-B6
Control box
RS485E-OPTION-L
Ethernet module
KBPERFP
Injection filter
GLX-PH-71016
Injection valve
RA08.2015
INOX temperature probe without connector
ACSPN
Neutral cleaning solution
ACPH
pH7 and pH-neutral
ACS2
Probe holder for 2 probes (1/2" connection)
ACS1/2
Probe holder raccord
KBPERSKPR
Roller holder
KBPERSKTS
Santoprene tube
GLX-PH-90004
Suction / impulsion tube Cristal / PE 4m
GLX-PH-90006
Suction tube PVC Cristal D 4x6
RS4WIFI-OPTION-W
Wifi Module
