Explosietekeningen

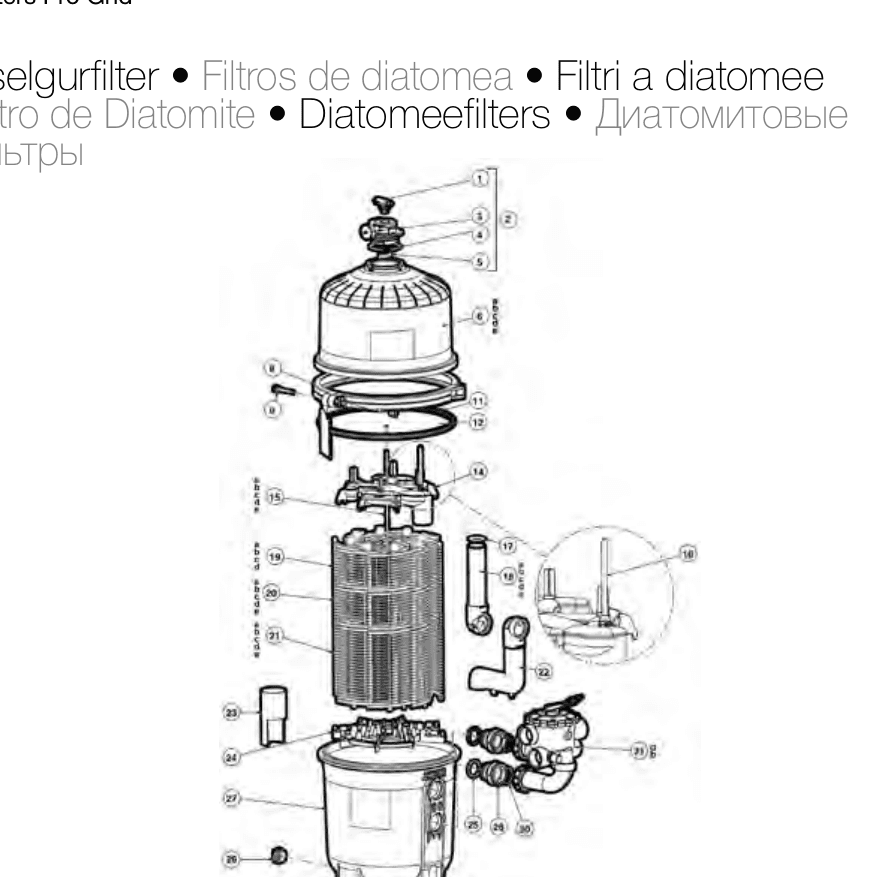

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward DE7220
27 gedocumenteerde onderdelen voor dit model.
CCX1000N
Adapter Nut
DEX2420F
Bulkhead Fitting
DEX2421JKIT
Clamp assembly with spring assembly
DEX2421J2
Clamp Handle
DEX2400C
Collector Manifold
DEX2420EA2
Distributer
SP1022C
Drain Plug with O-ring
DEX7200DS
Filter Element
DEX7200DA
Filter Element
DEX7220DC
Filter element cluster assembly (complete set of elements, collector, locator, etc.)
DEX2420T
Filter Element Locator
SX240Z2
Filter Element Locator
DEX7220BTC
Filter head
DEX2420ATC
Filter, Lower Body
DEX2422Z2
Filter Tank O-ring
DEX2400CR
Flex Air Relief Assembly
DEX2400Z5
Guarnizione O-ring
DEX2420MAR2
Manual air relief assembly
CCX1000V
Manual Air Relief with O-ring
ECX2712B1
Pressure Gauge
DEX2420Z8A
Pressure relief valve O-ring (x2)
ECX176B5
Retainer nut
DEX7200R
Retainer Rod
DEX7220EA
Standpipe
SX200Z4PAK2
Valve O'Ring (x2)
SP0710X60E
VariFlo™ Valve Assembly
SP0715X60E
VariFlo™ Valve Assembly
