Explosietekeningen

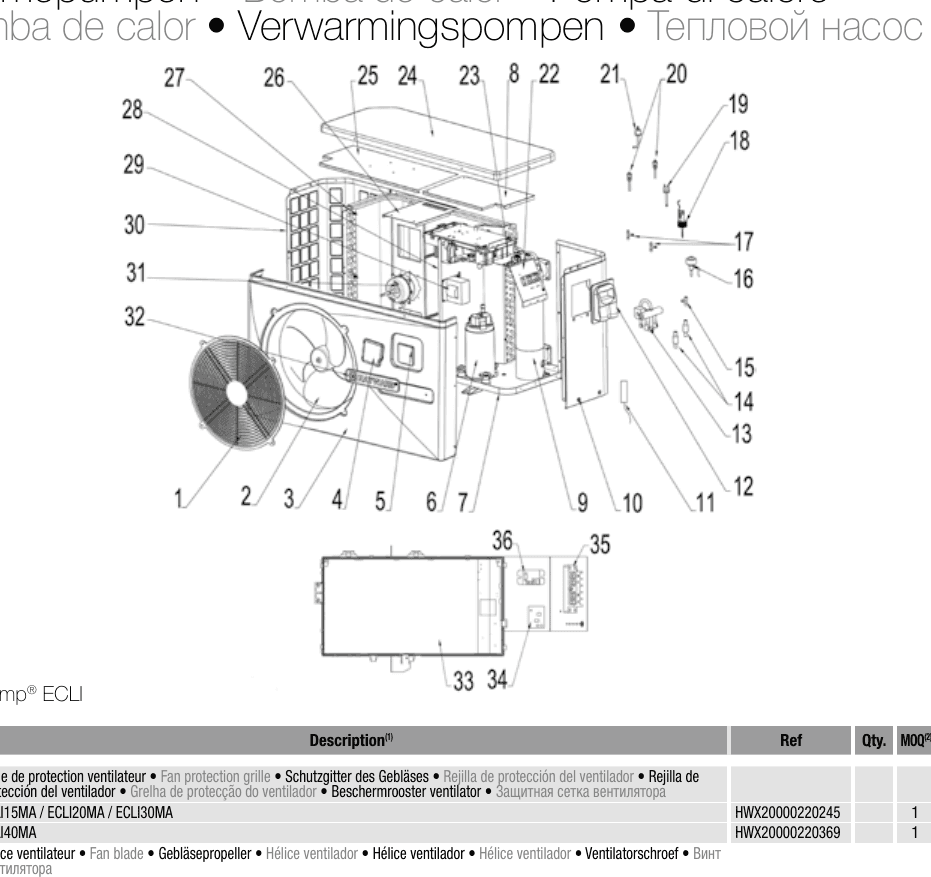

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward ECLI15MA
55 gedocumenteerde onderdelen voor dit model.
HWX40003901
5-pin terminal block
HWX09020029
Access door
HWX83000048
Ambient temp sensor 5k-350mm
HWX82500005
Coil
HWX82500006
Coil
HWX32000119048
Compressor
HWX01000003
Compressor
HWX00700445
Compressor aspiration sensor
HWX83000044
Compressor aspiration sensor
HWX83000026
Compressor discharge probe 50 k - 660 mm
HWX83000051
De-icing sensor
HWX01000013
Electronic expansion valve
HWX3060148570
Electronic expansion valve
HWX30103000006
Fan blade
HWX30103000001
Fan blade
HWX20000132
Fan motor
HWX2000018
Fan motor
HWX0700070
Fan motor bracket
HWX20000220245
Fan protection grille
HWX20041444
Filter (Ø9.7 - Ø9.7)
HWX20000140178
Filter (Ø9.7-Ø9.7)
HWX3010602502
Fin coil
HWX0000042
Fin coil
HWX30106004
Fin coil
HWX0000044
Fin coil
HWX3000012
Flow switch
HWX09000039
Front panel
HWX09000100
Front panel
HWX20000230596
Hayward-Logo
HWX0013605
High pressure switch
HWX72200070
LED controller
HWX07000446
Left panel
HWX20000360150
Low pressure switch
HWX72200148CP2
PCB board
HWX72200148BP1
PCB board
HWX72200148BP3
PCB board
HWX72200148BP2
PCB board
HWX20041437
Pressure sensor
HWX32012120061
PVC Titanium condenser
HWX03060037
PVC Titanium condenser
HWX32012120056
PVC Titanium condenser
HWX20000360297
Relay K2
HWX09000098
Right panel
HWX3000140157
Schrader valve
HWX0001460
T-Connector
HWX3040000002
T-Connector
HWX83000008
Transformer 230V~ / 12V~
HWX0900055
Upper panel
HWX30109120806
Upper panel
HWX83000052
Water inlet sensor 5 k - 850 mm
HWX83000050
Water outlet sensor 5 k - 410 mm
HWX09000320
Waterproof cover
HWX84100060
Winter cover
HWX84100063
Winter cover
HWX84100064
Winter cover
