Explosietekeningen

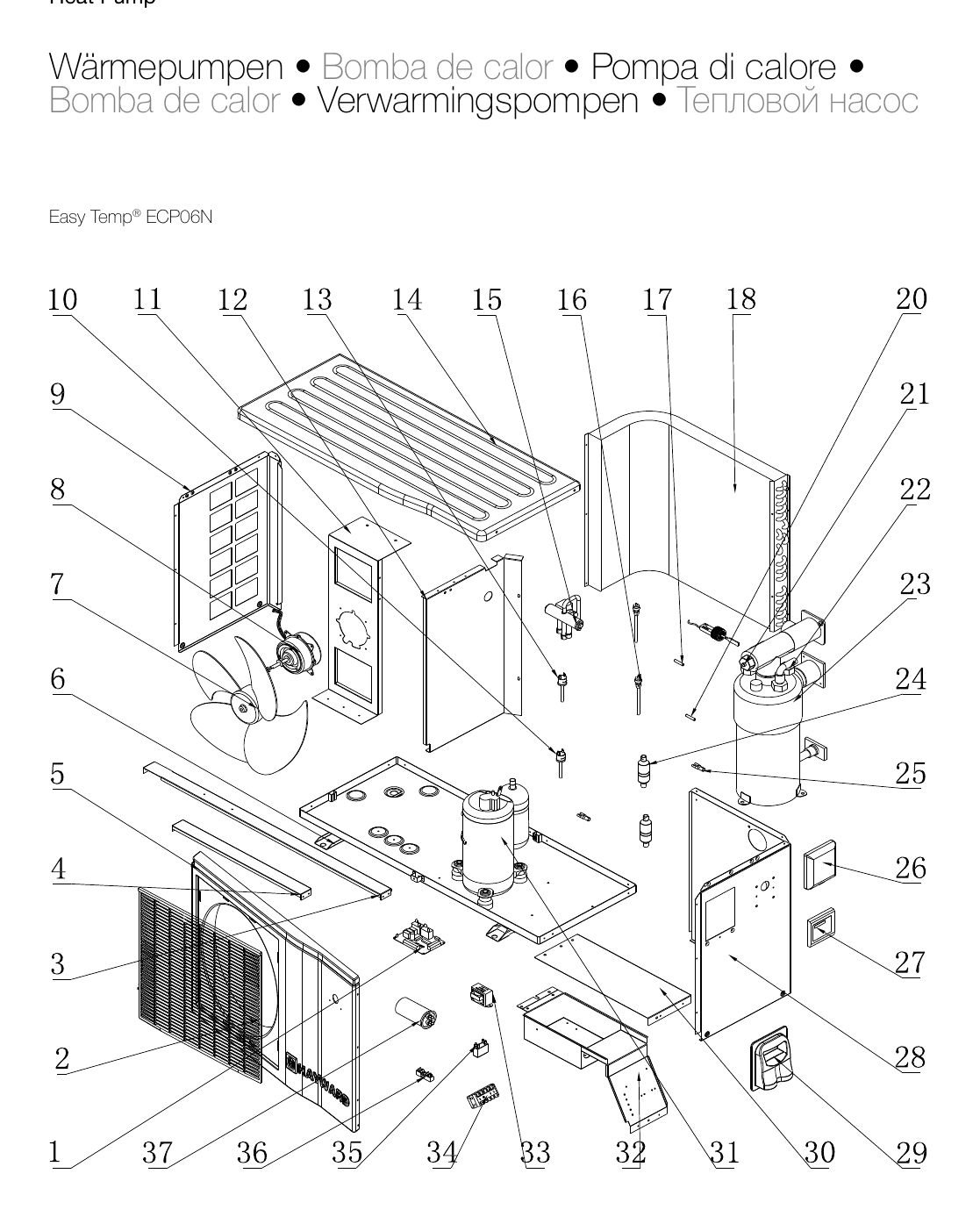

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward ECP06N
33 gedocumenteerde onderdelen voor dit model.
HWX20001418
4-ways valve
HWX200014068
Capillary connector
HWX20001106
Compressor
HWX20003504
Condenser (35µF)
HWX20003506
Condenser ventilator (2µF)
HWX32521006
Electrical box
HWX32521064
Electrical protection panel
HWX34012701
Fan blade
HWX34012301
Fan motor
HWX3252208
Fan protection grille
HWX20041444
Filter (Ø9.7 - Ø9.7)
HWX20001230
Fin coil
HWX325221084
Front panel
HWX32521063
Front stiffener
HWX20003605
High pressure pressostat
HWX325221083
Left panel
HWX20003603
Low pressure switch
HWX32521061
Motor bracket
HWX32521060
Partition plate
HWX950531145
PCB board
HWX325220054
Power box cover
HWX32521062
Rear stiffener
HWX950531188
Régulateur LCD
HWX325221082
Right panel
HWX2000140153
Schrader valve
HWX20003242
Temperature sensor
HWX20003909
Terminal block 2 connections
HWX20003901
Terminal L-N-GND 5 connections 4 mm²
HWX3251210
Titanium condenser
HWX325221085
Top panel
HWX200037006
Transformator 230V~/12V~
HWX20003111
Waterproof cover
HWX91001006
Winter cover
