Explosietekeningen

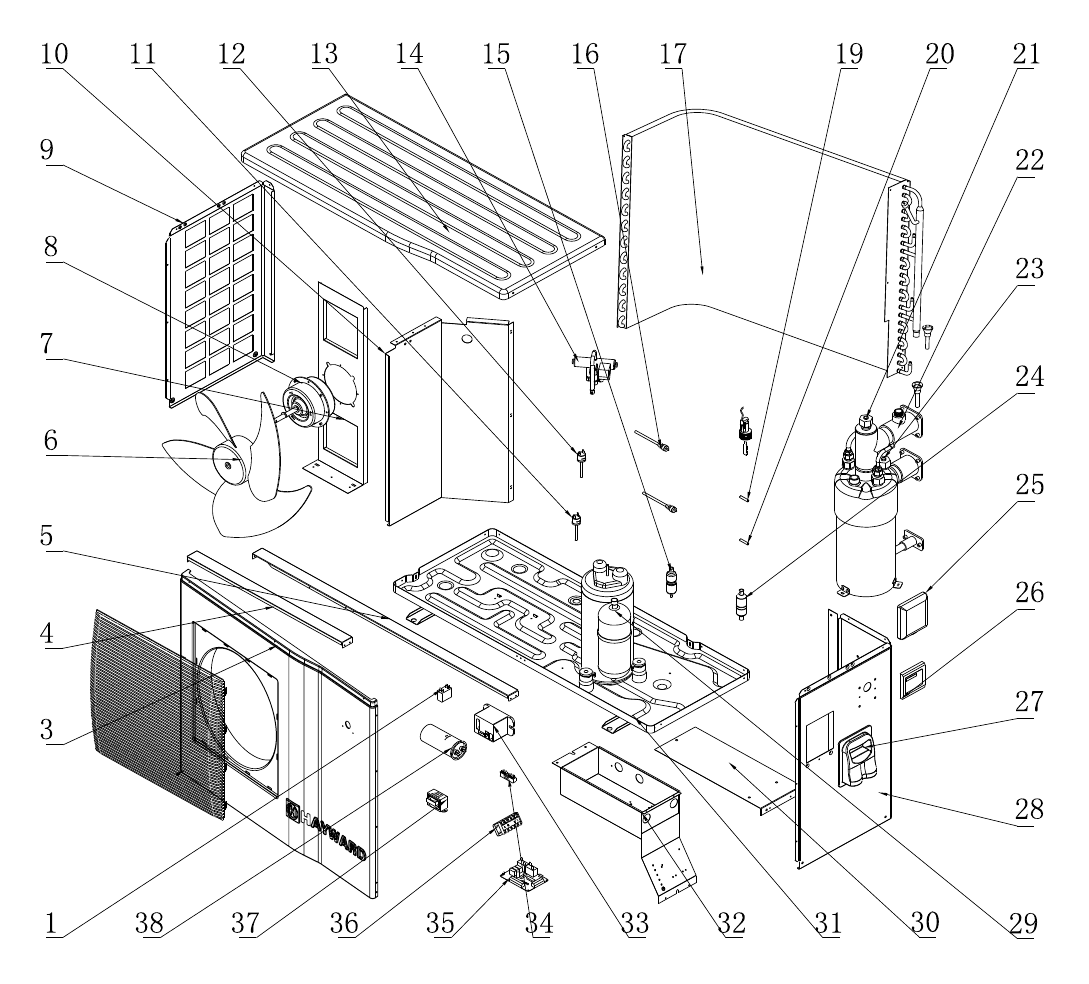

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward ECP08N
34 gedocumenteerde onderdelen voor dit model.
HWX20011418
4 ways valve
HWX32000220054
Access hatch
HWX3201210237
Bottom
HWX2001000007
Capillary
HWX2000010135
Compressor
HWX20003510
Compressor capacitor (60µF)
HWX3201221178
Electrical box cover
HWX3201221019
Electrical panel protection
HWX95051145
Electronic board
HWX35002701
Fan blade
HWX34043301
Fan motor
HWX3201221174
Fan motor bracket
HWX20000501
Fan motor capacitor (3µF)
HWX20014446
Filter (Ø9.7 - Ø3.4)
HWX20014444
Filter (Ø9.7 - Ø9.7)
HWX34061204
Fin coil
HWX3201221175
Front stiffener
HWX3201210240
Front stiffener
HWX20013805
High pressure switch
HWX95051188
LCD controller
HWX3201210238
Left panel
HWX20013806
Low pressure switch
HWX3201210241
Panel superior
HWX3200010514
Partition plate
HWX20003619
Power relay
HWX3201221018
Rear stiffener
HWX20000140153
Schrader
HWX20003242
Temperature sensor
HWX20003205
Temperature sensor
HWX20003909
Terminal block 2 connections
HWX20003901
Terminal L-N-GND 5 connections 4 mm²
HWX32081205
Titanium PVC condenser
HWX200037006
Transformator 230V~/12V~
HWX20002111
Waterproof cover
