Explosietekeningen

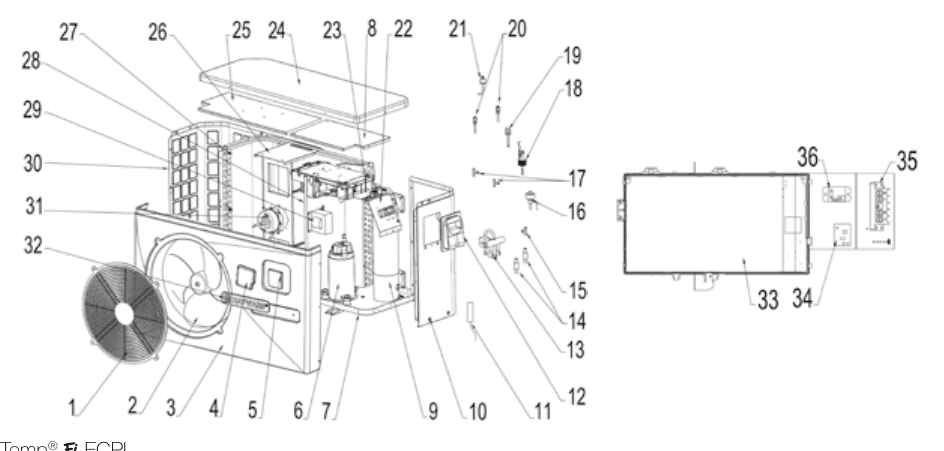

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward ECP15MA
60 gedocumenteerde onderdelen voor dit model.
HWX920922029
Access trap
HWX82500020
Coil
HWX82500006
Coil
HWX72200145CP2
Compressor
HWX22002070
Compressor
HWX90100046
Compressor
HWX2200110448
Compressor
HWX83000044
Compressor aspiration sensor
HWX83000026
Compressor discharge probe 50 k - 660 mm
HWX2040300002
Connector T
HWX21001460
Connector T
HWX83000051
De-icing sensor
HWX21000013
Electronic expansion valve
HWX2000140570
Electronic expansion valve
HWX20003257
EMC filter
HWX9010602502
Evaporator
HWX90600044
Evaporator
HWX90600043
Evaporator
HWX9010602042
Evaporator
HWX2000220269
Fan blade
HWX2000220132
Fan motor
HWX200022018
Fan motor
HWX2000220245
Fan protection grille
HWX2000140178
Filter (Ø9.7)
HWX20041444
Filter (Ø9.7 - Ø9.7)
HWX83000012
Flow switch
HWX83000013
Flow switch
HWX90103000008
Front panel
HWX90103000001
Front panel
HWX20002202696
Hayward logo
HWX20013605
High pressure switch
HWX90700455
Link Plate
HWX90700452
Link Plate
HWX2000140157
Low pressure switch
HWX90103002518
Motor support
HWX90700248
Motor support
HWX72200148BP1
PCB board
HWX72200148BP3
PCB board
HWX72200148BP2
PCB board
HWX4000360297
Power relay
HWX20041437
Pressure sensor
HWX90600519
Regulator LED
HWX90700456
Right panel
HWX90700453
Right panel
HWX2000140150
Schrader 7/16 screw
HWX90105000806
Superior panel
HWX83000049
Temperature sensor Air 5 k - 350 mm
HWX40001901
Terminal block 5 connections
HWX90600037
Titanium condenser PVC
HWX72300120061
Titanium condenser PVC
HWX72300011
Titanium condenser PVC
HWX72300015
Titanium condenser PVC
HWX72300014
Titanium condenser PVC
HWX72300010
Titan/PVC condenser
HWX40002608
Transformer 230V~ / 12V~
HWX90900055
Upper front panel
HWX83000052
Water inlet sensor 5 k - 850 mm
HWX83000050
Water outlet sensor 5 k - 410 mm
HWX90900160
Waterproof cover
HWX90100063
Winter cover
