Explosietekeningen

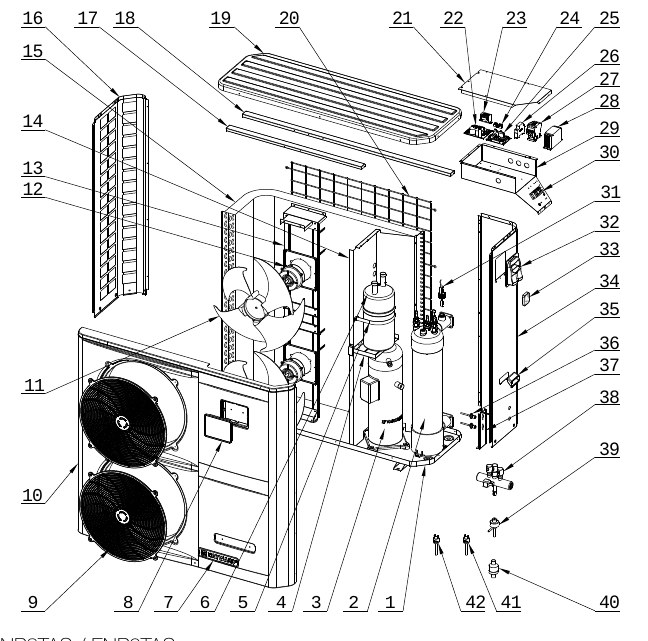

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward EN9PTAS
53 gedocumenteerde onderdelen voor dit model.
HWX20011491
4 ways valve
HWX2009220032
Access door
HWX2027210035
Bottom panel
HWX32027210013
Clamps
HWX2000110164
Compressor
HWX2000110166
Compressor
HWX2000360209
Compressor contactor
HWX20002214
Crankcase heater
HWX2027210025
Electrical box cover
HWX2027210024
Electrical box cover
HWX200007414
Electronic card
HWX200007415
Electronic card
HWX200114040
Electronic expansion valve
HWX32019210027
Fan blade
HWX2000270004
Fan blade
HWX2000330132
Fan motor
HWX2027210015
Fan motor bracket
HWX2000220169
Fan protection grille
HWX2000140027
Filter
HWX2027210007
Finned evaporator
HWX2027210022
Front corner
HWX2027210017
Front panel
HWX2009220038
Handle
HWX2009220037
Handle
HWX2027210019
Handle
HWX2000140141
Hayward Logo
HWX20003605
High pressure pressostat
HWX2019210038
HP/LP support plate
HWX50531037709
Inverter card
HWX50531041205
Inverter card
HWX200010018
LED controller
HWX2027210020
Left panel
HWX2027210011
Liquid reservoir support
HWX3202710040
Liquid tank
HWX20003603
Low pressure switch
HWX200036023
Phase controller
HWX2027210023
Rear corner
HWX2027210008
Right panel
HWX32015120008
Separation panel
HWX32015120007
Separation panel
HWX2000360092
Smart Starter
HWX20002242
Temperature sensor
HWX20002223
Temperature sensor (50kΩ)
HWX20003909
Terminal block 2 connections
HWX2000390180
Terminal block 5 connections
HWX32015120006
Titanium PVC condenser
HWX32015120005
Titanium PVC condenser
HWX2027210018
Top cover
HWX2027210010
Top protection grille
HWX32015210021
Top protection grille
HWX200037003
Transformer 230V - / 12V -
HWX20000012
Water flow detector
HWX32015240004
Winter cover
