Explosietekeningen

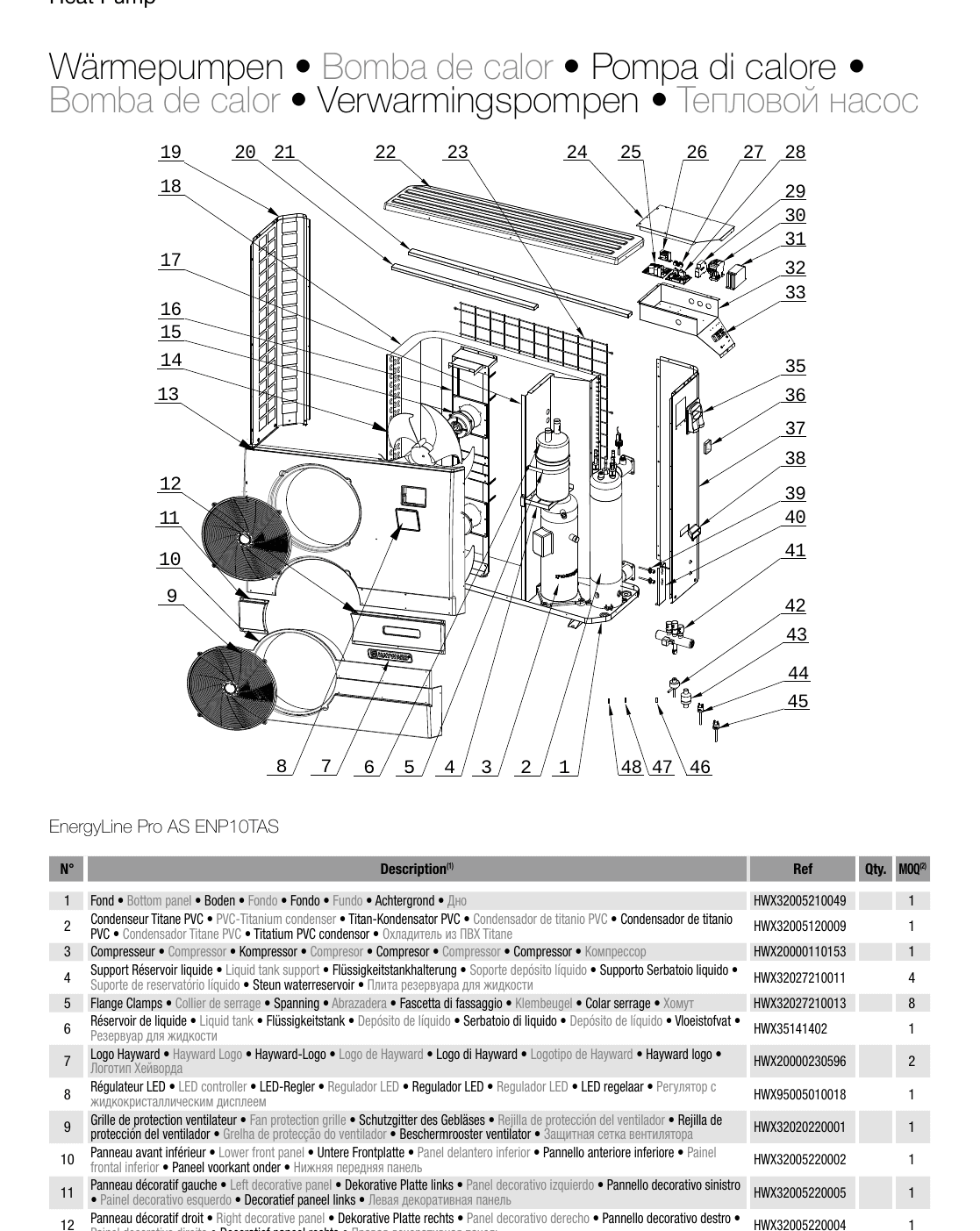

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward ENP10TAS
47 gedocumenteerde onderdelen voor dit model.
HWX20001488
4-way valve
HWX3205210049
Bottom panel
HWX32027210013
Clamps
HWX20000110153
Compressor
HWX2000360209
Compressor contactor
HWX3205220032
Electrical access trap
HWX3205210054
Electrical box cover
HWX3205210053
Electrical grid
HWX2000140338
Electronic expansion valve
HWX3205210063
Evaporator grid
HWX32005120008
Evaporator panel
HWX2000270025
Fan blade
HWX3205210058
Fan motor bracket
HWX32020220001
Fan protection grille
HWX20001455
Filter
HWX2000230597
Handle
HWX35141402
Hayward Logo
HWX2000230596
Hayward Logo
HWX20003605
High pressure pressostat
HWX3205210038
HP/BP support
HWX3205210052
HP/BP support plate
HWX9505103710
Inverter card
HWX9505010018
LCD controller 160x130mm
HWX3205210059
Left panel
HWX32027210011
Liquid reservoir
HWX3205220002
Lower front panel
HWX20003603
Low pressure switch
HWX2000330061
Moteur ventilateur
HWX3205220004
Panneau décoratif droit
HWX32005220005
Panneau décoratif gauche
HWX3205220003
Panneau supérieur
HWX32051037116
PCB
HWX200036023
Phase controller
HWX3205120009
PVC-Titanium condenser
HWX3205210055
Rear panel
HWX3205210056
Rear stiffener
HWX32020210002
Right panel
HWX3205210065
Separation panel
HWX2000360092
Smart Starter
HWX20003242
Temperature sensor
HWX20003214
Temperature sensor
HWX20003223
Temperature sensor (50KΩ)
HWX20003809
Terminal block 2 connections
HWX2000380180
Terminal block 5 connections
HWX2000370003
Transformer 230V~/ 12V~
HWX3205220001
Upper front panel
HWX2000240208
Winter cover
