Explosietekeningen

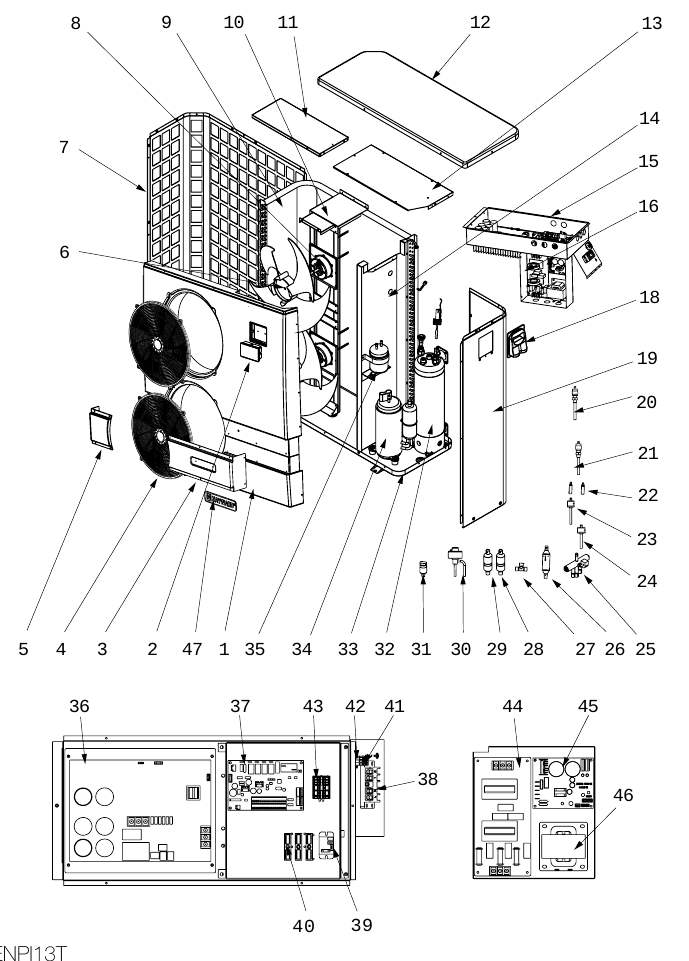

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward ENP113T-1
47 gedocumenteerde onderdelen voor dit model.
HWX00011491
4-way valve
HWX32019210124
Bottom panel
HWX32019210071
Center wall
HWX0001499
Check valve
HWX263000069
Color touch screen
HWX0000110027
Compressor
HWX0001436
Connector T Ø9.7mm x 3
HWX32019210026
Electric box
HWX0000140401
Electronic expansion valve
HWX0000310100
EMC Filter
HWX0000270004
Fan blade
HWX0000330132
Fan motor
HWX32019210063
Fan motor bracket
HWX0000220169
Fan protection grill
HWX0000140027
Filter
HWX0001444
Filter (Ø9.7-Ø9.7)
HWX32015120012
Fin coil
HWX0000360005
Flow switch
HWX32019230093
Front panel
HWX00013605
High pressure switch
HWX32019210105
Horizontal electric box
HWX0000310199
Inductance
HWX0000310200
Inductance
HWX0000310179
Inverter card
HWX32019220094
Left decorative panel
HWX32019210126
Left panel
HWX0000140579
Liquid bottle
HWX0000360157
Low pressure switch
HWX9595156904
PCB board
HWX0000360123
Pressure sensor
HWX0000220029
Protection cover
HWX0000140143
Reducer Ø9.52 - Ø2.9
HWX0000140150
Reducer Ø9.52 - Ø6.35
HWX32019220095
Right decorative panel
HWX32019210025
Right panel
HWX0000140012
Schrader 95mm 7/16"
HWX32019210070
Support panel
HWX0000390048
Terminal block 2 connections
HWX00003909
Terminal block 2 connections
HWX0000390049
Terminal block 2 connections
HWX0000390046
Terminal block 2 connections
HWX0000390297
Terminal block with 2 connections
HWX0000390100
Terminal block with 5 connections
HWX72300062
Titanium PVC heat exchanger
HWX32019210127
Top cover
HWX9595310377
Ventilator inverter card
HWX32019210098
Vertical Electric Box
