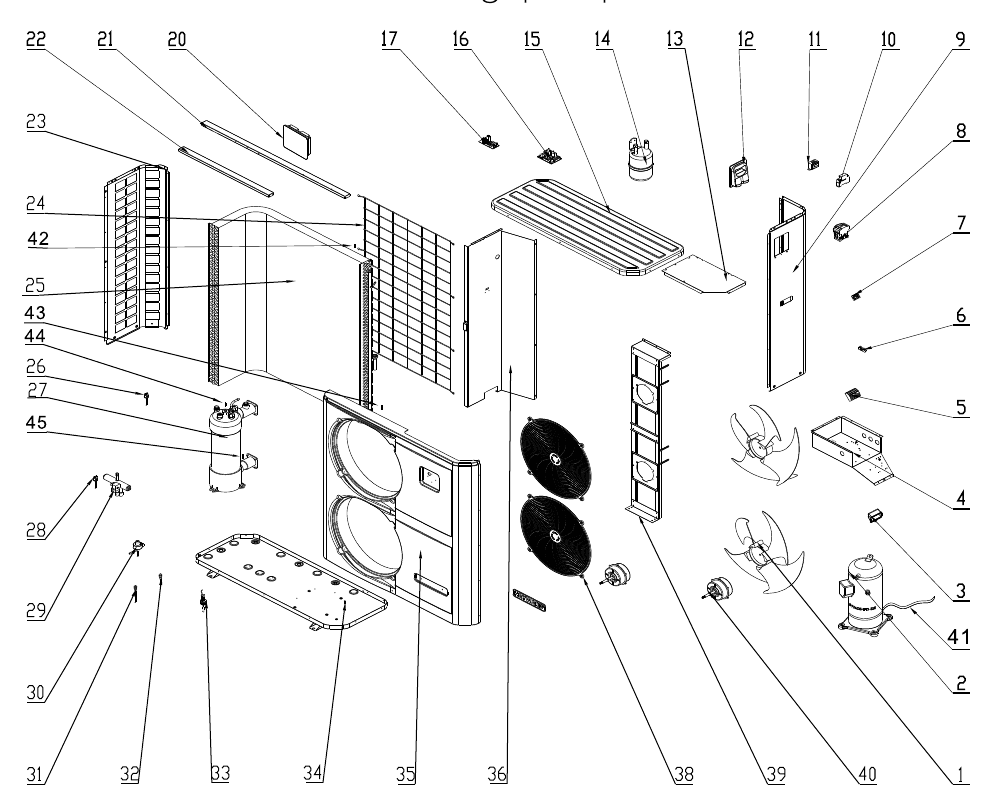

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward ENP6TASC
47 gedocumenteerde onderdelen voor dit model.
HWX32019210066
Bottom
HWX32019210054
Bottom
HWX20000110147
Compressor
HWX20000110146
Compressor
HWX20003653
Compressor contactor
HWX20001201007
Condenseur Titane
HWX20001345
Drain Plug
HWX32019210060
Electrical box cover
HWX32019210057
Electrical box cover
HWX32019210040
Electrical box cover
HWX32019210058
Electrical box cover
HWX20001400846
Expansion valve
HWX20001400848
Expansion valve
HWX32019210027
Fan blade
HWX2000270004
Fan blade
HWX32008220036
Fan guard
HWX20019120008
Fin coil
HWX20019120007
Fin coil
HWX30002012
Flow switch
HWX32019210049
Front panel
HWX32019210064
Front panel
HWX32019210030
Front stiffener
HWX32008220037
Handle
HWX20000230596
Hayward-Logo
HWX200013602
High pressure switch
HWX550531037706
Inverter card
HWX55053010018
LED controller
HWX32019210028
Left plate
HWX20001440
Liquid tank
HWX20003603
Low pressure switch
HWX20000330132
Motor
HWX2000033022
Motor
HWX220007411E
PCB board
HWX200036023
Phase controller
HWX32008220032
Protection cover
HWX32019210059
Rear stiffener
HWX32019220013
Right front headband
HWX32019220012
Right front headband
HWX32019210061
Separation panel
HWX20003242
Temperature sensor
HWX20003214
Temperature sensor
HWX20003909
Terminal block 2 connections
HWX20003902
Terminal block with 5 connections
HWX20003933
Terminal box 3 connections
HWX32019210031
Top grille
HWX200037003
Transformer 230V - / 12V -
HWX20001491
Vanne 4 voies
