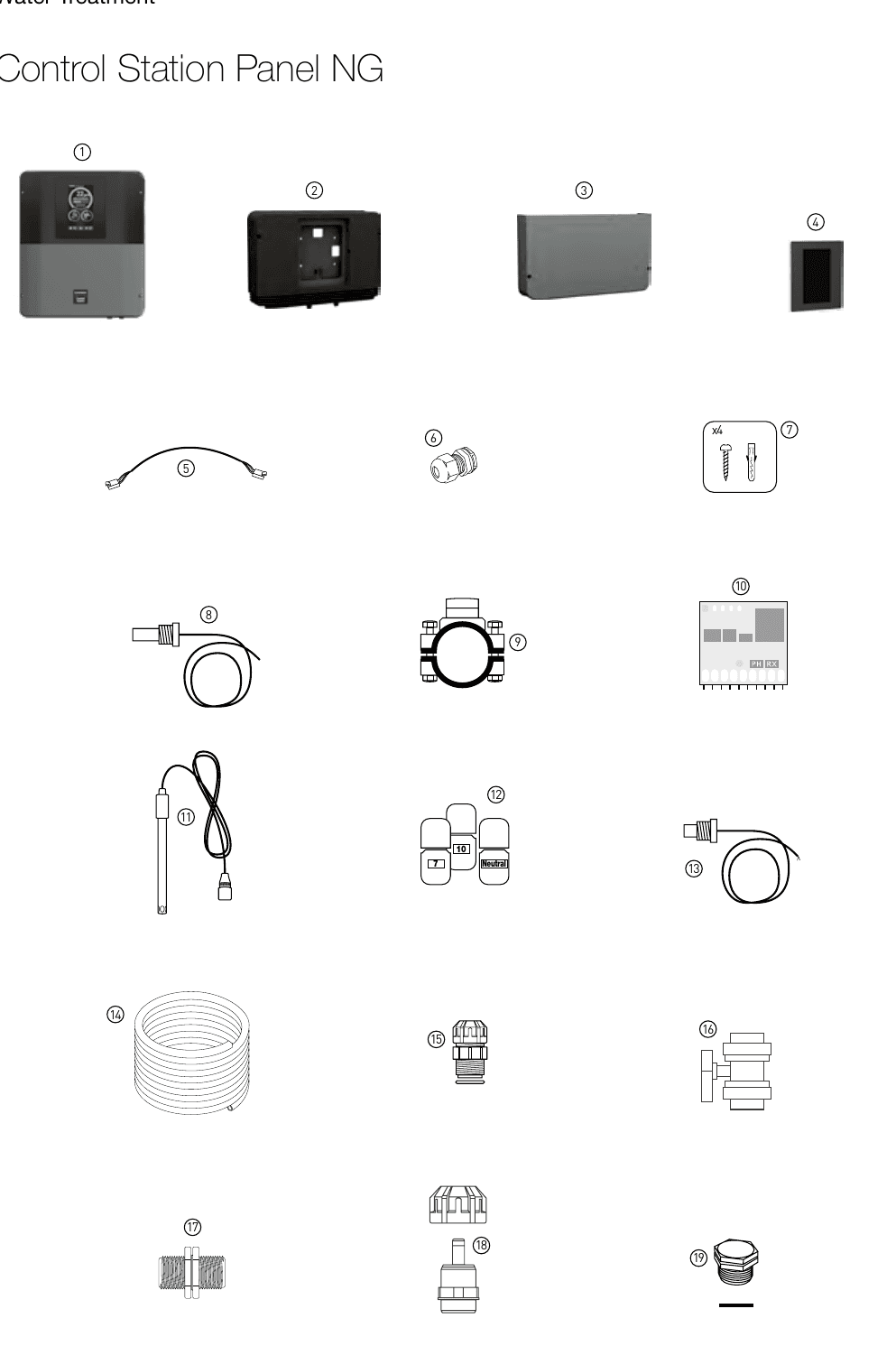

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward HCCPHORPANG
36 gedocumenteerde onderdelen voor dit model.
GLX-PNL-000001
10x14 mm tubing 25 m
GLX-PNL-000014
1/2” Male Tube Fitting
RA010
2.5m pH glass probe with BNC connector
RA12XG
2.5m redox probe gold glass with BNC connector
KV02
2 m wire for ground earthing+ ACS1 holder
ACSRX
Buffer
REL2138
Cable for Touch Screen
RL03369
Cable gland
RA13C
Chlorine Potentiostatic probe
RA13GT
Chlorine probe Electrolyte
RA13MT
Chlorine probe Electrolyte
GLX-PNL-89654
Collar
091020002000
Electronic box
ACSPFG
Filter for bypass support
GLX-PNL-000006
Fitting
GLX-PNL-000002
Flow switch sensor
CHPOL
Free Chlorine probe
GLX-PNL-000004
Hanger for probe holder module
CTSNK
Inferior of plastic NG
CJTPNG-LB
Inferior of plastic NG, light blue
RA08.2015
INOX temperature probe without connector
ACCPH
Kit of buffers for pH calibration
GLX-PNL-000011
Membrane kit for chlorine probe holder
ACSPHN
Neutral cleaning solution
GLX-PLUS-CHIP
pH/Rx chip
GLX-PNL-000003
Probe holder
GLX-PNL-000009
Proximity flow sensor
GLX-PNL-000010
Regulator screw kit
GLX-PNL-000015
Stainless steel tap
CJTPSNG-B
Superior plastic cover NG, smoked color
GLX-PNL-000012
Support for chlorine probe holder
GLX-PNL-000005
Support for probe holder module
ACSTP
Tap male thread 1/2” + o’ring
GLX-PNL-000007
Valve by-pass
KITSUI-4T
Wall mounting kit for Electronic box
GLX-PNL-000013
Water tap kit
