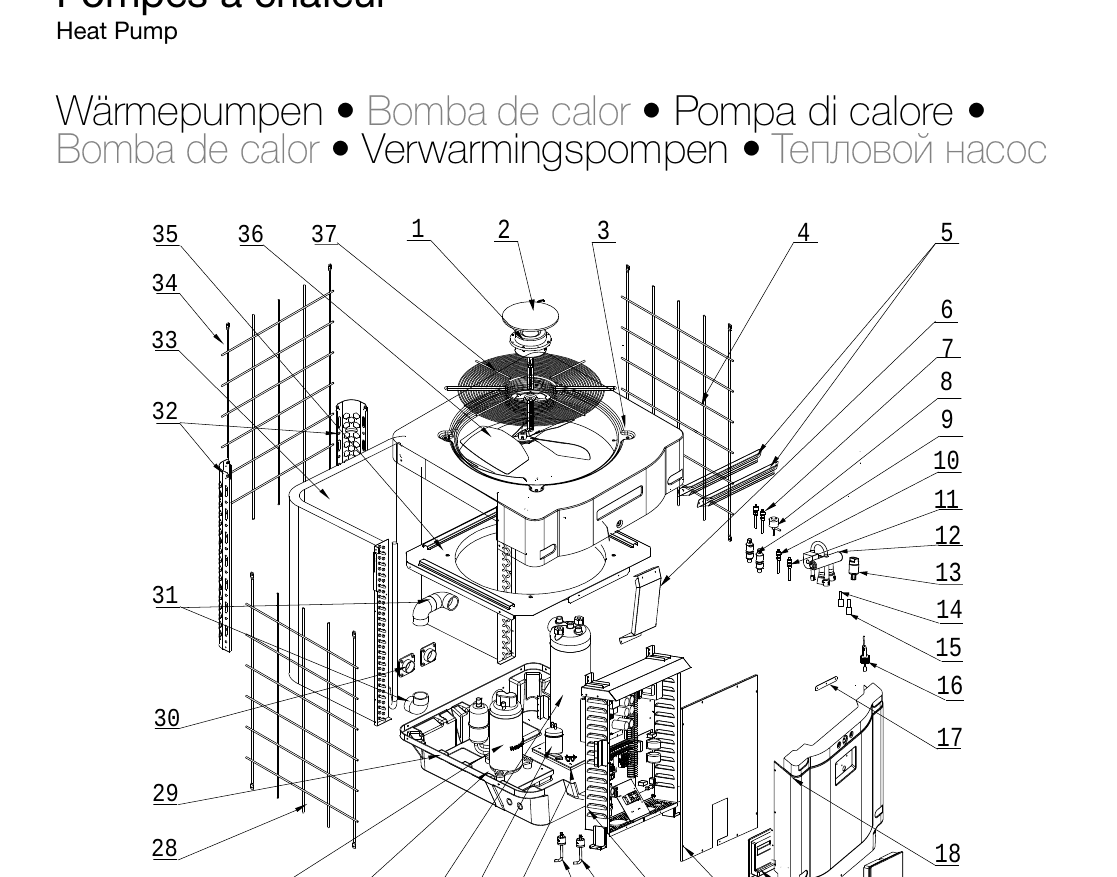

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward HP5211ET3
54 gedocumenteerde onderdelen voor dit model.
HWX20000390180
4-pole terminal
HWX2300485
4-way terminal
HWX2000220247
Black electric access hatch
HWX0000390014
Capacitor board
HWX20003202
Coil/air/water temp sensor
HWX30100069
Compressor
HWX2000333145
Compressor onloading sonde
HWX2000330069
Ecran tactile couleur
HWX30702644
Electrical box cover
HWX00700160
Electronic board
HWX2000330401
Electronic expansion valve
HWX00705112
Fan blade
HWX00705115
Fan blade
HWX2000330381
Fan Motor
HWX35072195
Fan protection grille
HWX00002270057
Fan protection grille
HWX00022010142
Fan protection grille
HWX2000140027
Filter
HWX2000140449
Filter
HWX00600074
Filter relay
HWX32003120028
Fin coil
HWX00603429
Fin coil
HWX00702656
Fin coil
HWX03090738
Front panel
HWX307210071
Guard plate
HWX2000360187
High pressure switch NC 3.2MPa/4.4 Mpa
HWX2300112
Inverter compressor card
HWX2200033301E
Inverter ventilator card
HWX2200033211E
Inverter ventilator card
HWX2200033251E
Inverter ventilator card
HWX0000200001
K2 relay
HWX30705114
Left-hand lateral protection
HWX00702346
Left/right vertical support
HWX0000140579
Liquid bottle
HWX00002010223
L-N-GND terminal
HWX0000360297
L-N-GND terminal
HWX2000360054
Low pressure switch NO 0.15 Mpa/0.05 Mpa
HWX2000220320
Motor cover
HWX03090737
Panneau supérieur
HWX2000360274
Pressure sensor
HWX99111491
Pressure sensor
HWX2000140512
Pressure Tap
HWX20011359
PVC elbow Ø 50 mm
HWX0000370030
Reactance coil
HWX20000390046
Reactance coil
HWX004120013
Rear protection
HWX30705113
Right-hand lateral protection
HWX2000140150
Schrader 7/16 screw
HWX2000140153
Schrader valve
HWX200031379
Square 50 mm threaded connector
HWX2000120023
Titanium/PVC condenser
HWX200030069
Water flow detector
HWX84100126
Winter cover
HWX84100127
Winter cover
