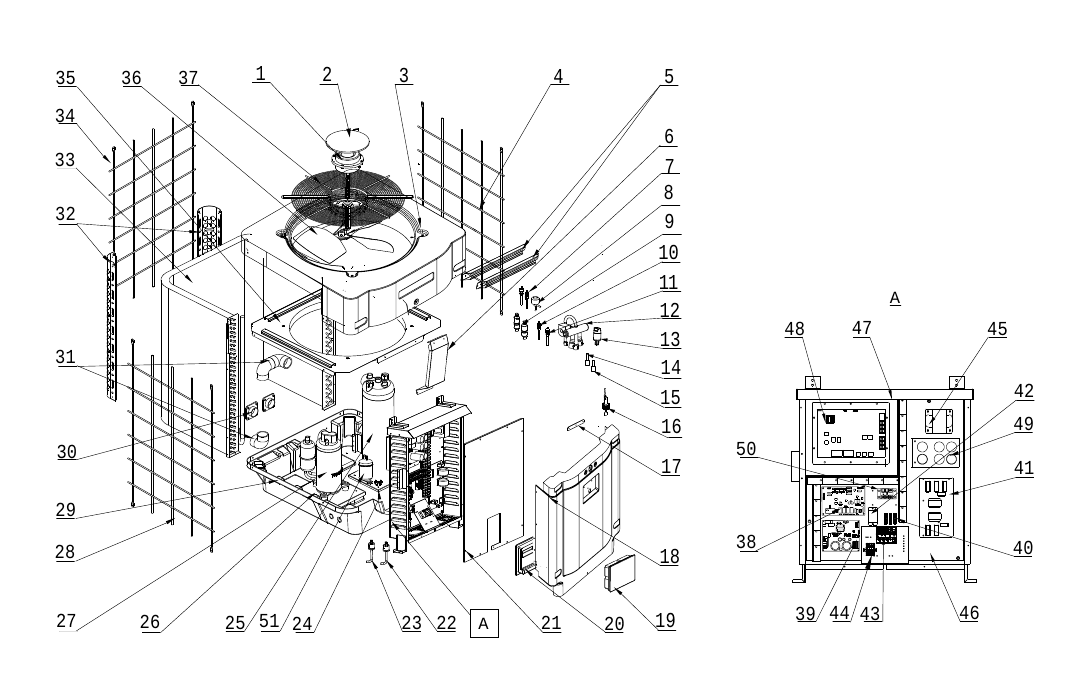

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward HP5251ET3
27 gedocumenteerde onderdelen voor dit model.
HWX2000220247
Black electric access hatch
HWX20003202
Coil/air/water temp sensor
HWX30100069
Compressor
HWX2000333145
Compressor onloading sonde
HWX2000330069
Ecran tactile couleur
HWX30702644
Electrical box cover
HWX2000140450
Electronic decompressor
HWX2000330401
Electronic expansion valve
HWX2000330381
Fan Motor
HWX2000140027
Filter
HWX03090719
Front panel
HWX307210071
Guard plate
HWX2000360187
High pressure switch NC 3.2MPa/4.4 Mpa
HWX30705114
Left-hand lateral protection
HWX2000360054
Low pressure switch NO 0.15 Mpa/0.05 Mpa
HWX2000220320
Motor cover
HWX03090718
Panneau supérieur
HWX99111491
Pressure sensor
HWX2000360274
Pressure sensor
HWX2000140512
Pressure Tap
HWX20011359
PVC elbow Ø 50 mm
HWX30705113
Right-hand lateral protection
HWX2000140150
Schrader 7/16 screw
HWX2000140153
Schrader valve
HWX200031379
Square 50 mm threaded connector
HWX32016120011
Titanium/PVC condenser
HWX200030069
Water flow detector
