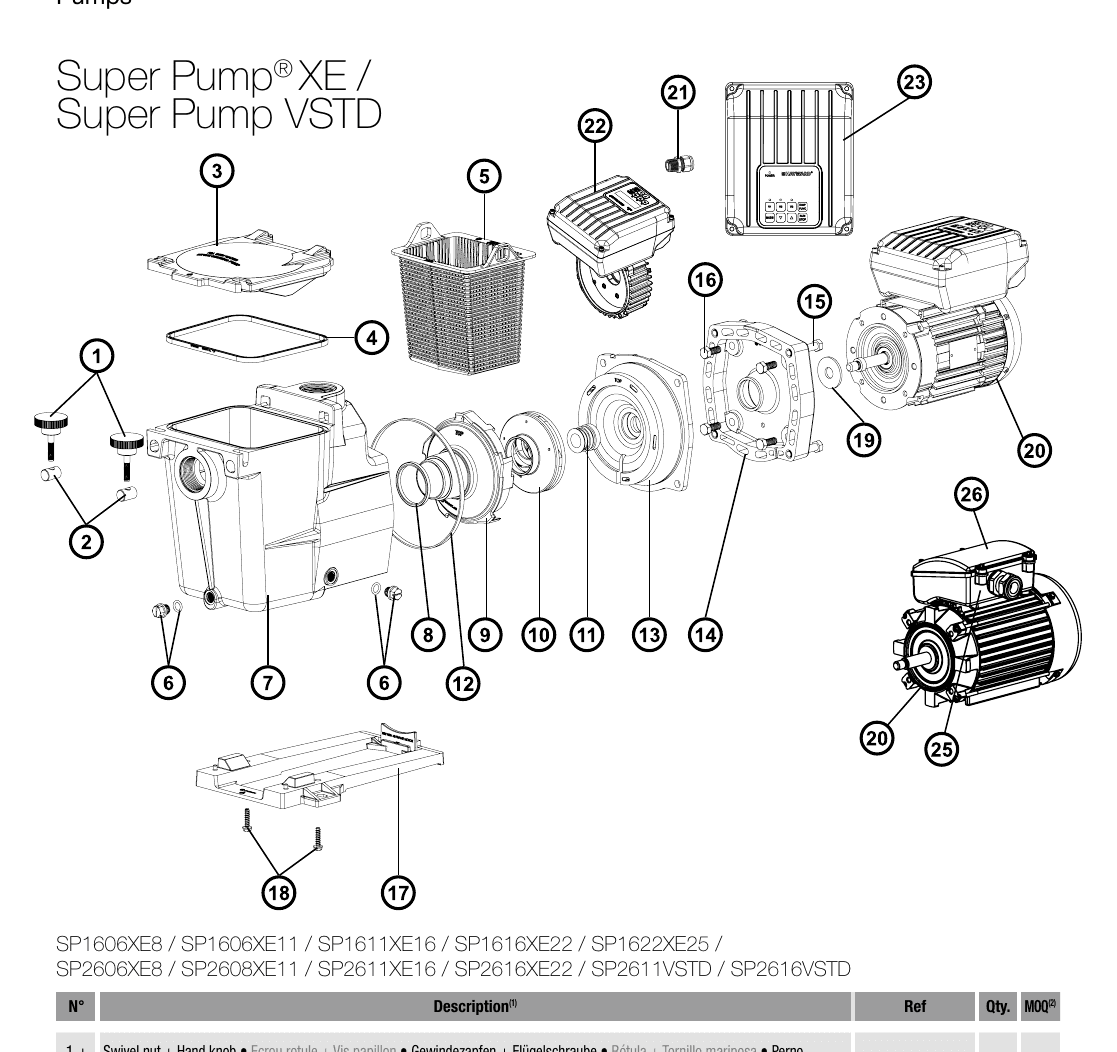

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward SP1606XE8
54 gedocumenteerde onderdelen voor dit model.
SPXCA40UF
Capacitor
SPXCA30UF
Capacitor
SPXCA35UF
Capacitor
SPXCA45UF
Capacitor
CVX250135
Cover
SPX1608BEX
Diffuser
SPX2608BEX
Diffuser
SPX1600R
Diffuser gasket
SPX1600Z5
Drain plug
SPX1700FG
Drain Plug
SPX1600V
Drain Plug
SPX1100FVSTD
Electronic module
SPX1100EVSTD
Electronic module VSTD
V0005
Fan
V0004
Fan bearings kit 0.50-1.50HP
CVX0241
Fan cover
CVX0242
Fan cover
CVX0243
Fan cover
SPX1100P1
Gland
SPX1600Z2
Housing gasket
SPX1600E
Housing plate
SPX1600Z4
Housing screw
SPX1600AAEW
Housing/Strainer
SPX2610CE
Impeller
SPX2615CE
Impeller
SPX2607CE
Impeller
SPX2605CE
Impeller
SPX1610CEX
Impeller (1997 ->)
SPX1615CEX
Impeller (1997 ->)
SPX1621CEX
Impeller (1997 ->)
SPX1605CEX
Impeller (1997 ->)
SPX1607CEX
Impeller (1997 ->)
CVX2501S15
Junction box
SPX1600S
Lid gasket
SPX6022RS
Motor Bearings Kit
SPX0125Z4E
Motor cap screw
SPX1100VSTDSE
Motor (Mono)
SPX3012Z1CBE2
Motor (Mono)
SPX3007Z1CBE2
Motor (Mono)
SPX1100VSTDSA
Motor (Mono)
SPX1600F
Motor mounting plate
SPX3025Z1CAETB
Motor (Tri)
SPX3020Z1CAETB
Motor (Tri)
SPX3015Z1CAETB
Motor (Tri)
SPX1600G1
Mounting bracket
SPX1620AEW
Pump Housing / Strainer
SPX1600Z2VIT
Seal assembly
SPX1600GS
Set of gaskets
SPX0125F1
Slinger
SPX1600M
Strainer basket
SPX1600D
Strainer cover
SPX2600ADAPTKit
Superpump 2" male to 1,5" female retrofit kit
SPX1600PN
Swivel nut
SPX1100MVSTD
User interface
