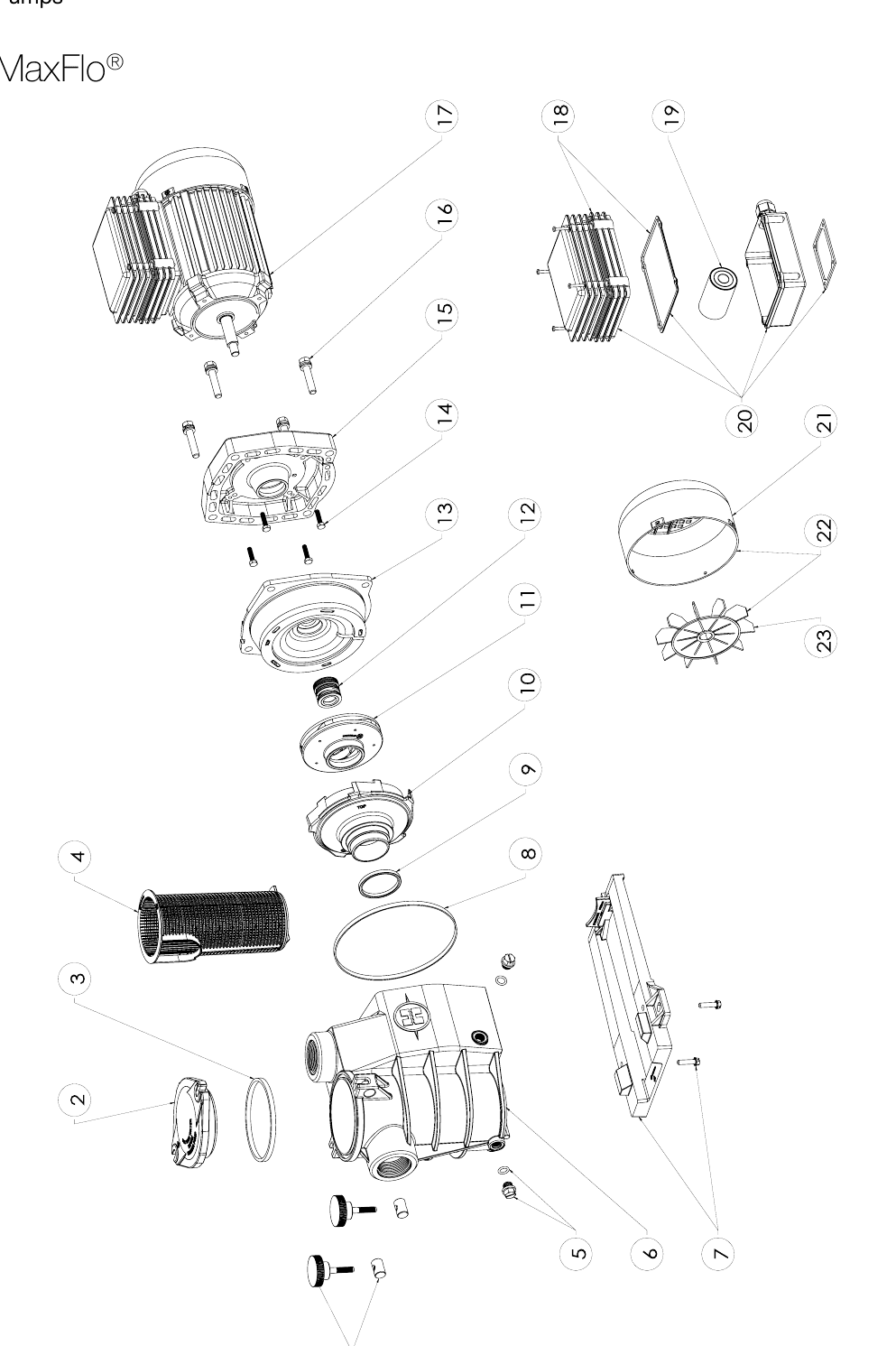

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward SP1806HW1
39 gedocumenteerde onderdelen voor dit model.
SPXCA35F
Capacitor
SPXCA16F
Capacitor
SPX30021CCA2
Capacitor
SPX30021CCA1
Capacitor
SPXCA20F
Capacitor
SPX2800B
Diffuser
SPX1600R
Diffuser gasket
SPX1700FG
Drain Plug
SPX30021CF1
Fan
SPX30021CF2
Fan
SPX30021CEF2
Fan cover
SPX30021CEF1
Fan cover
SPX2800GW1W2
Housing gasket
SPX1600T
Housing gasket
SPX1600Z4KT
Housing screw
SPX2810CE
Impeller
SPX2815CE
Impeller
SPX2808CE
Impeller
SPX2807CEMB
Impeller
SPX2807CEM
Impeller
SPX30021CCG
Junction box
SPX30021CAETB
Junction box
SPX30021CEC2
Junction box cover
SPX30021CEC1
Junction box cover
SPX3125T
Lid gasket
SPX3007CB2
Motor
SPX3010CB2
Motor
SPX3015CB2
Motor
SPX0125Z4E
Motor cap screw
SPX2800EVS
Motor mounting plate
SPX2800C
Motor support
SPX2800W1
Mounting bracket
SPX2800AE
Pump Housing / Strainer
SPX1600Z2EVS
Shaft seal assembly
SPX0125FS2
Slinger
SPX2800M
Strainer basket
SPX3000LA
Strainer cover
SPX1600PN
Swivel nut
SPX30021CWBG
Terminal board assembly
