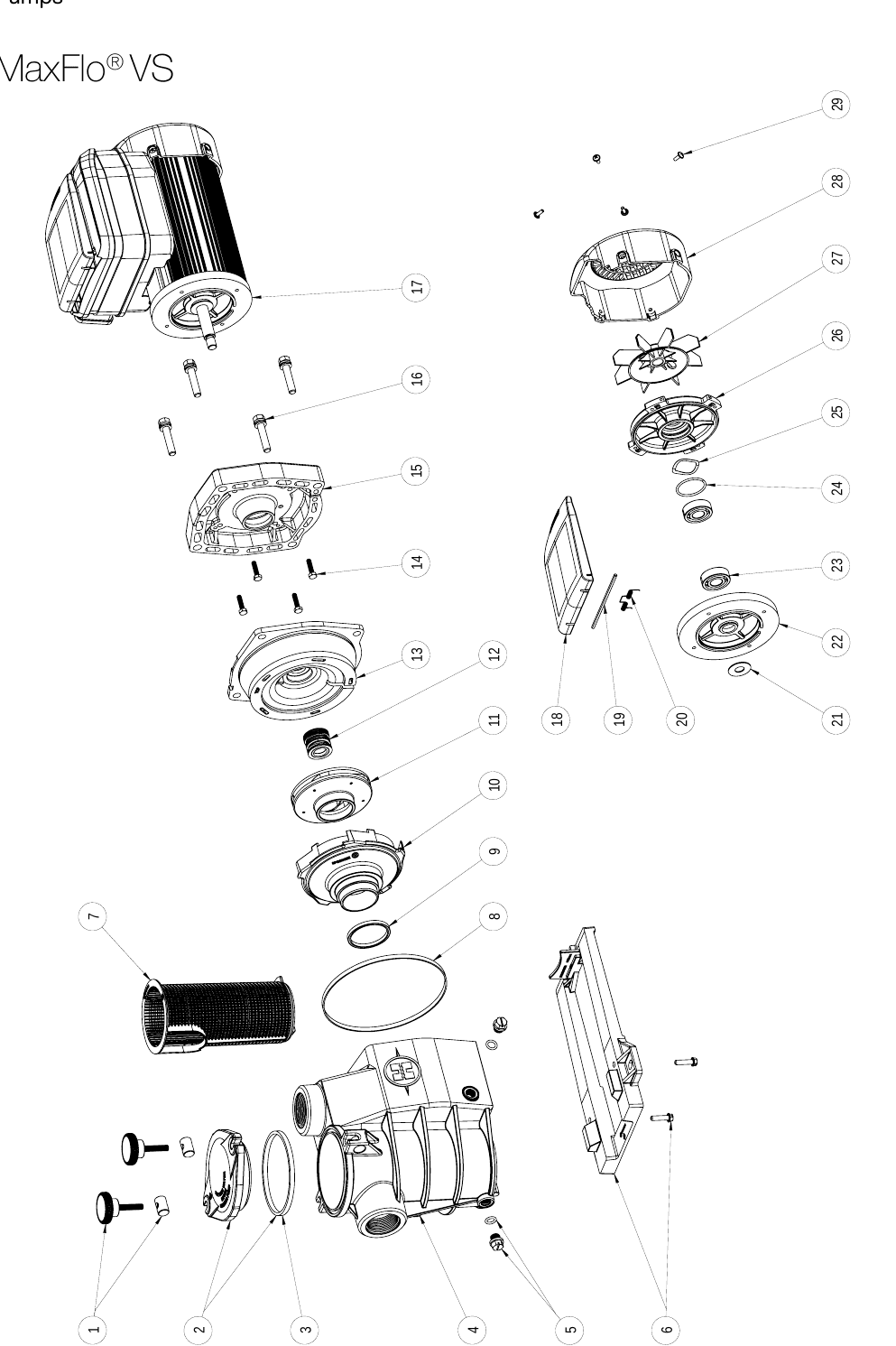

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward SP1811VS
29 gedocumenteerde onderdelen voor dit model.
SPX1811MSPM
Anti-vibrations screws
SPX1811MSPF
Bearing
SPX1811MSPB
Control box cover
SPX1811MSPA
Control box gasket
SPX1811MSPH
Corrugated Gasket
SPX2800BE
Diffuser
SPX2800R
Diffuser gasket
SPX1600R
Diffuser gasket
SPX1700FG
Drain Plug
SPX1811MSPL
Fan Cover (Plastic Ventilator Cover)
SPX1811MSPK
Fan (Plastic Wind Blade)
SPX1811MSPE
Front End Cover
SPX1600Z4KIT
Housing screw
SPX2811VIT
Impeller
SPX0125Z1
Lid gasket
SPX3010Z1CBVS
Motor
SPX2800EKS
Motor mounting plate
SPX2800G1W1
Mounting bracket
SPX2800EA
Pump housing + Strainer
SPX1811MSPI
Rear End Cover
SPX1250Z2XE
Seal assembly
SPX2800ES
Seal plate
SPX1250Z4E
Seal plate screw
SPX1811MSPG
Stator
SPX2800M
Strainer basket
SPX1250LA
Strainer cover
SPX1600PN
Swivel nut
SPX1811MSPC
Torsion Spring Ø0,7*43,5
SPX1811MSPD
Wiper Ring
