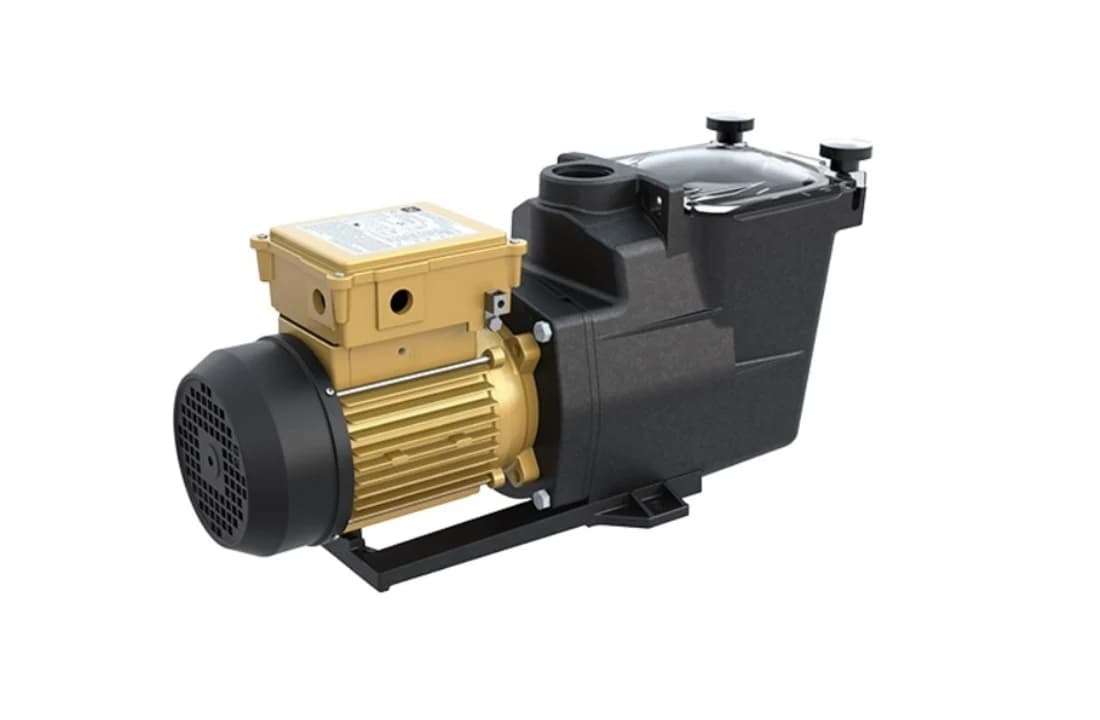

Onderdelen voor Hayward SP2616XY221
23 gedocumenteerde onderdelen voor dit model.
50501002200
Capacitor
SPX1600R
Diffuser gasket
SPX1700FG
Drain Plug
V0004
Fan bearings kit 0.50-1.50HP
SPX1600T
Housing gasket
SPX1600Z1
Housing screw
SPX1600Z4
Housing screw
SPX2600ZAKIT
Housing screw
SPX2610CE
Impeller
SPX1600S
Lid gasket
SPX2600G1SR2
Motor Support Frame
SPX1600G1
Mounting bracket
SPX2600E
Mounting plate
SPX1620AEW
Pump Housing / Strainer
SPX1600ZS
Pump support
SPX1600Z2VIT
Seal assembly
SPX1600M
Strainer basket
SPX1600D
Strainer cover
SPX2600ADAPTKit
Superpump 2" male to 1,5" female retrofit kit
SPX1600PN
Swivel nut
SP2600UNKIT50
Union connector
SPX2600UNKIT63
Union connector
SPX0125Z52
Union O'ring
