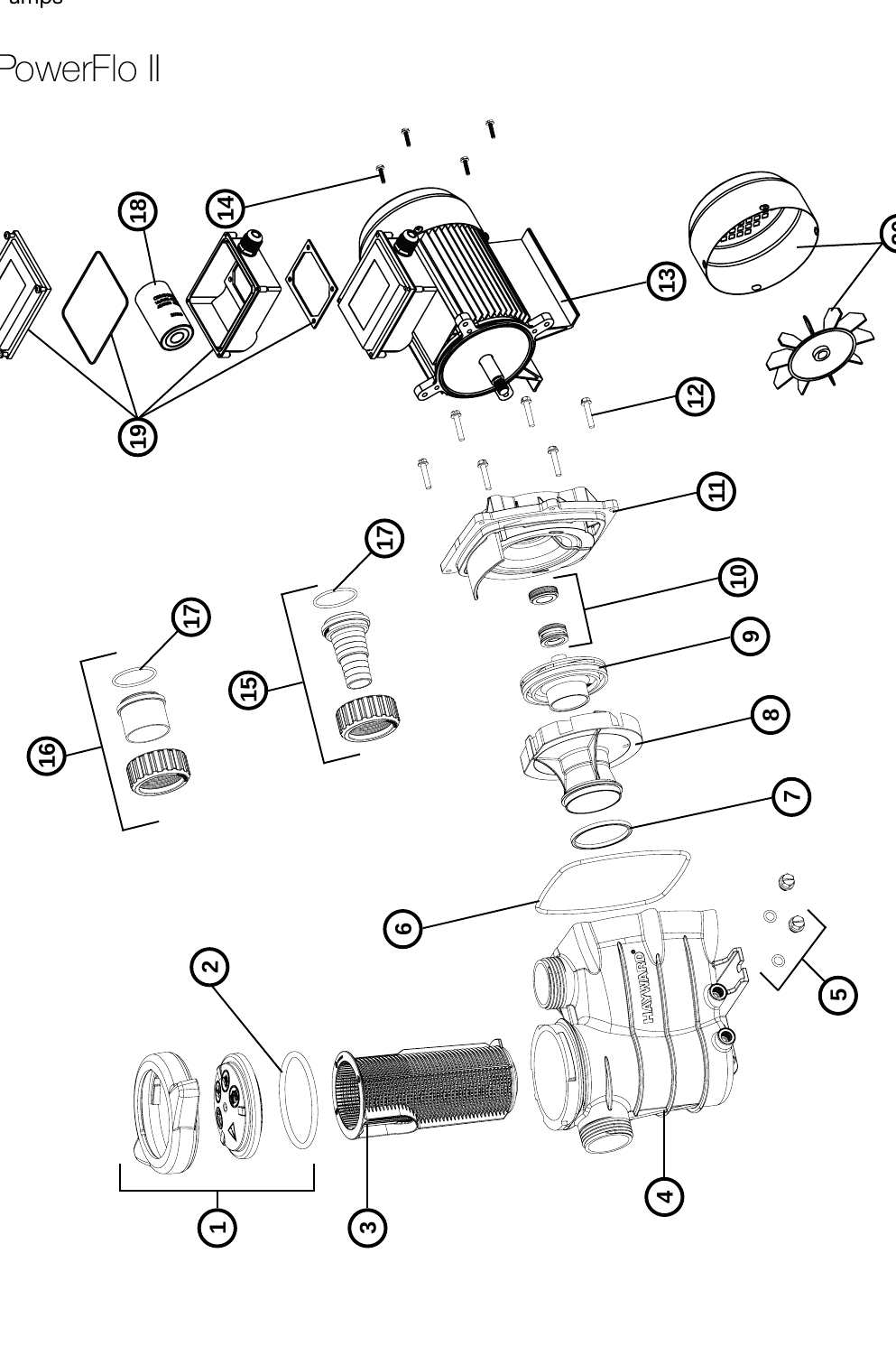

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hayward SPX1102XE31
36 gedocumenteerde onderdelen voor dit model.
SPX8100Z1CCA1
Capacitor
SPX8100Z1CCA3
Capacitor
SPX8100Z1CCA2
Capacitor
SPXCA30UF
Capacitor
SPXCA25UF
Capacitor
SPXCA20UF
Capacitor
SPXCA18UF
Capacitor
SPX8100Z1CCA4
Capacitor
SPX8100B
Diffuser
SPX1700FG
Drain Plug
SPX8100Z1CECF
Fan cover
6060Z1
Housing bolt
SPX8100R
Housing gasket
SPX8103T
Impeller
SPX8110T
Impeller
SPX8115T
Impeller
SPX8107T
Impeller
SPX8105T
Impeller
SPX8100Z1CWBG1
Junction box assembly
SPX8100Z1CWBG2
Junction box assembly
SPX8107Z1CE2
Motor
SPX8103Z1CE1
Motor
SPX8105Z1CE2
Motor
SPX8110Z1CE2
Motor
SPX8115Z1CE2
Motor
SPX8100Z1
Motor bolt
SPX8100AA
Pump housing / Strainer
SPX1600Z2VIT
Seal assembly
SPX8100GS
Set of gaskets
SPX8100M
Strainer basket
SPX8100DLS
Strainer cover
SPX8100E
Strainer cover O-ring
SPX8100S
Strainer cover O-ring
SPX8100UNBPAK
Union connector kit
SPX8100UNSPAK
Union connector kit 50mm
SPX8100IND
Union O-ring
