Explosietekeningen

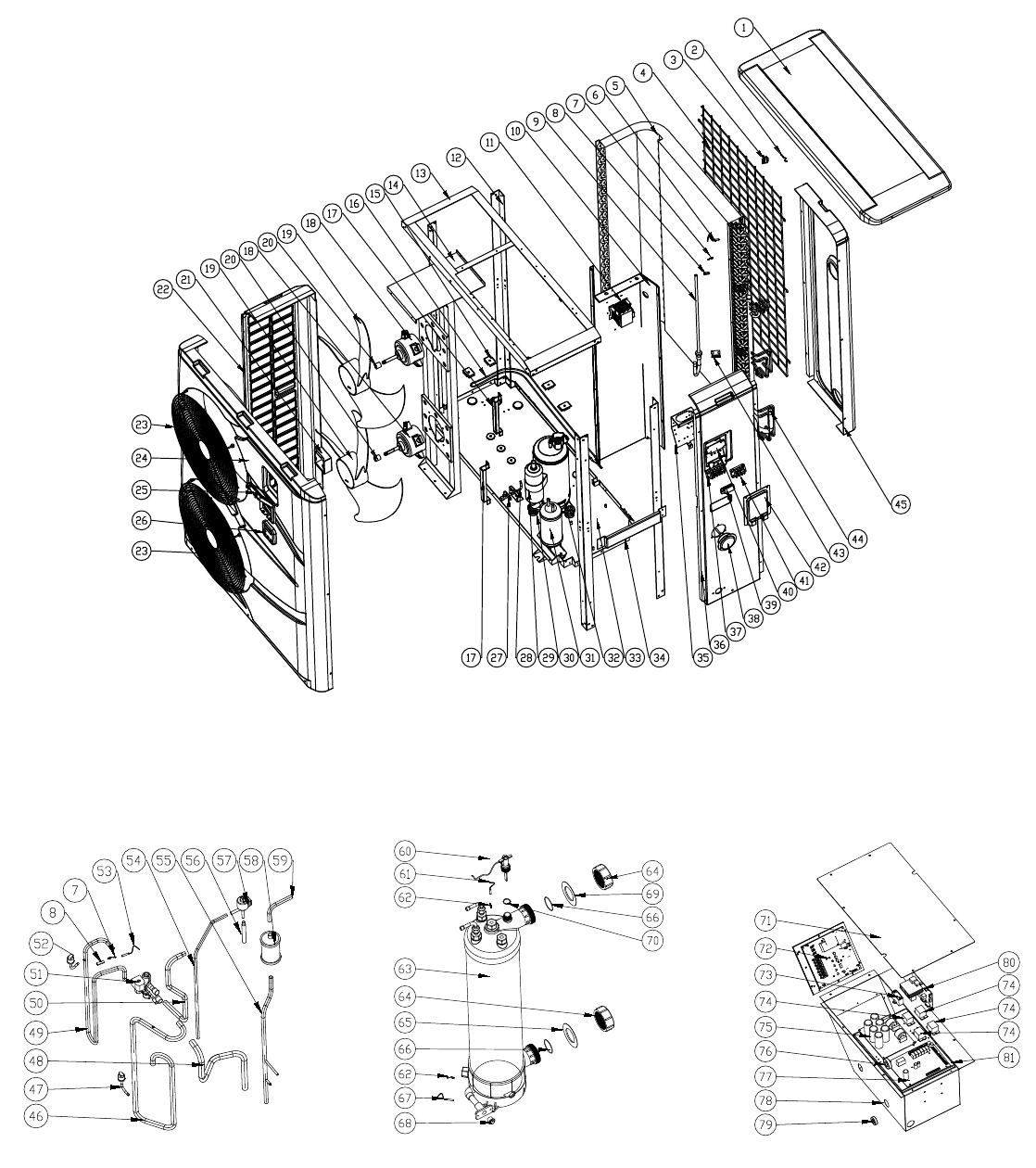

Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hydro-Pro 7024523
19 gedocumenteerde onderdelen voor dit model.
7025155
Compressor heating belt 230V 35W 430mm plug (8x4)
7026008
Driver board HMD4W-3P22 IBQ050TR4A
7020274
Evaporator heating belt 230V 65W 2000mm
7021815
Fan blade 496mm x 150mm, 12mm hole anticlockwise
7021814
Fan motor HMD30-3P10B 130W
7026009
Filter board HMF4W-2B
7024793
High pressure switch 3.6 – 4.2Mpa
7021826
LED display Inverter SHHCLEDV2MM101
7024791
Low pressure switch 0.1 – 0.3Mpa
7026010
Main board HWM1W-6B02 IB050R4A
7020260
Pipe temperature sensor TH2 plug (6x4)
0121241
Plug PP 1/2" male thread 10bar black
7010518
Pressure gauge
7020259
Top cover
7014126
Water connection set 50mm compression type ECO & Flotide
7020257
Water flow switch VH-2 plug (9x27mm)
7020261
Water inlet temperature sensor TH3 plug (6x4)
7020263
Water in temperature sensor TH6 plug (6x4)
7020262
Water out temperature sensor TH5 plug (6x4)
