TYPE Z INVERTER
- Categorie:
- Warmtepompen
De Hydro-Pro 7024519 is een onderdeel voor warmtepompen uit de TYPE Z INVERTER-serie. Dit component is ontworpen voor gebruik in zwembad- en spaverwarmingssystemen met inverter-technologie. Het onderdeel ondersteunt efficiënte temperatuurregeling in zowel privé- als commerciële toepassingen.

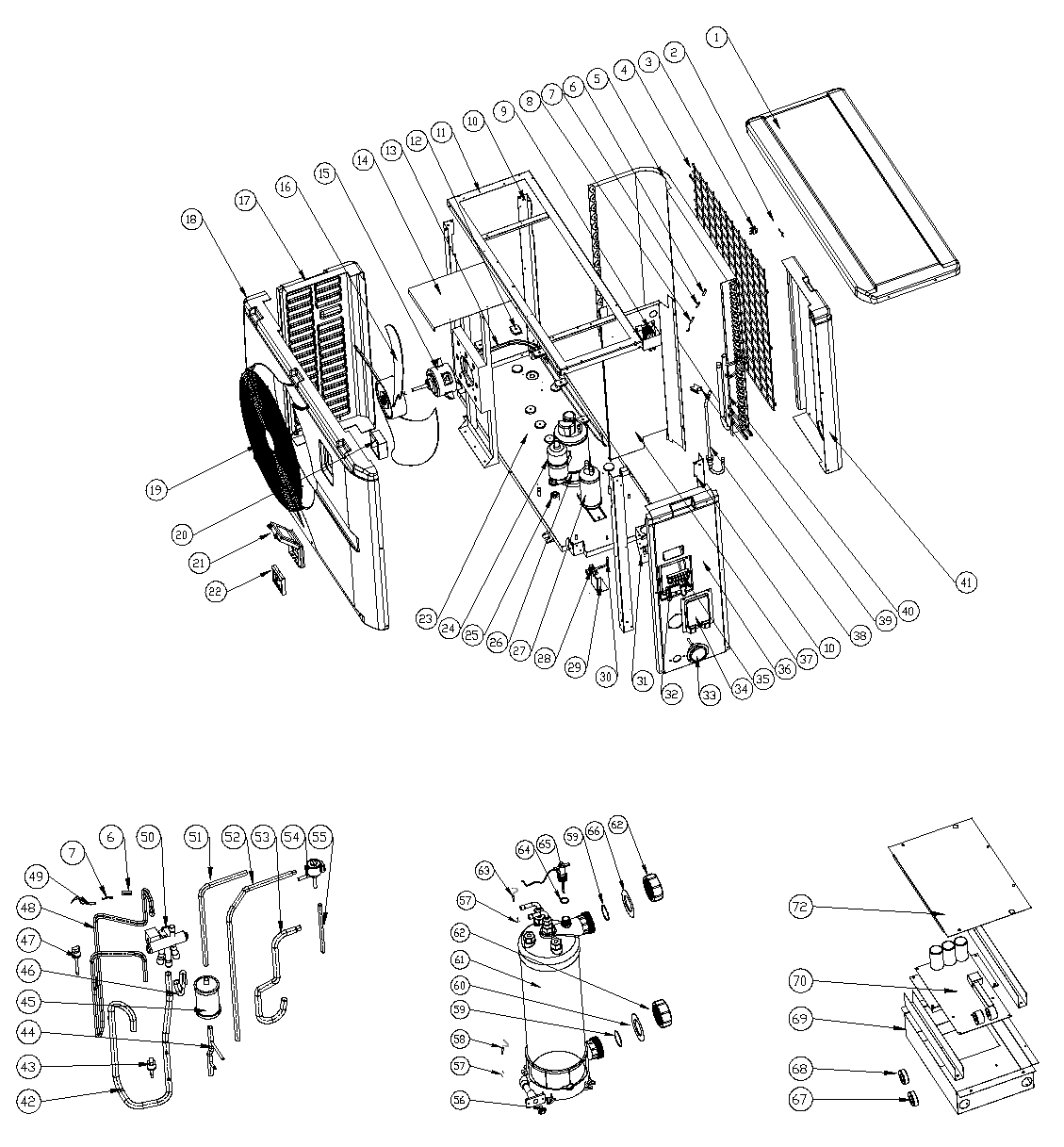

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Hydro-Pro 7024519
73 gedocumenteerde onderdelen voor dit model.
HYDRO-PRO-Z19-32-POS-50
4-way valve
HYDRO-PRO-Z19-32-POS-3
Ambient temp. sensor clip
HYDRO-PRO-Z19-32-POS-25
Anti-vibration hammer
HYDRO-PRO-Z19-32-POS-42
Back gas piping
HYDRO-PRO-Z19-32-POS-4
Back grid
HYDRO-PRO-Z19-32-POS-23
Base tray
HYDRO-PRO-Z19-32-POS-60
Blue rubber ring
HYDRO-PRO-Z19-32-POS-37
Bottom panel
702203
Cable for display inverter 5-wires 15V1
HYDRO-PRO-Z19-32-POS-55
Capillary for pressure test
HYDRO-PRO-Z19-32-POS-12
Clip
7025155
Compressor heating belt 230V 35W 430mm plug (8x4)
HYDRO-PRO-Z19-32-POS-24
Compressor MVB33FBPMC
HYDRO-PRO-Z19-32-POS-21
Controller box
HYDRO-PRO-Z19-32-POS-20
Controller box
HYDRO-PRO-Z19-32-POS-38
Distribution piping
HYDRO-PRO-Z19-32-POS-69
Electric box
HYDRO-PRO-Z19-32-POS-72
Electric box cover
HYDRO-PRO-Z19-32-POS-54
Electronic expansion valve
HYDRO-PRO-Z19-32-POS-5
Evaporator
702074
Evaporator heating belt 230V 58W 2000mm
HYDRO-PRO-Z19-32-POS-49
Exhaust temperature sensor TH3 plug (6x4)
7021816
Fan blade 514mm x 148mm, 10mm hole anticlockwise
HYDRO-PRO-Z19-32-POS-17
Fan grid
HYDRO-PRO-Z19-32-POS-14
Fan motor bracket
7021812
Fan motor ZWB37B002B 120W
HYDRO-PRO-Z19-32-POS-19
Fan suction grid
HYDRO-PRO-Z19-32-POS-45
Filter
HYDRO-PRO-Z19-32-POS-18
Front panel
HYDRO-PRO-Z19-32-POS-40
Gas collecting piping
HYDRO-PRO-Z19-32-POS-28
Globe valve
HYDRO-PRO-Z19-32-POS-29
Globe valve board
7024793
High pressure switch 3.6 – 4.2Mpa
HYDRO-PRO-Z19-32-POS-47
High pressure switch 3.6 - 4.4Mpa
HYDRO-PRO-Z19-32-POS-7
Inner casing pipe
7021826
LED display Inverter SHHCLEDV2MM101
HYDRO-PRO-Z19-32-POS-41
Left panel
HYDRO-PRO-Z19-32-POS-27
Liquid reservoir
HYDRO-PRO-Z19-32-POS-30
Low pressure
7024791
Low pressure switch 0.1 – 0.3Mpa
HYDRO-PRO-Z19-32-POS-68
Magnetic ring
HYDRO-PRO-Z19-32-POS-67
Magnetic ring
7025158
Main board HWM1W-1200 IBD3R3A
HYDRO-PRO-Z19-32-POS-32
N/A
HYDRO-PRO-Z19-32-POS-71
N/A
HYDRO-PRO-Z19-32-POS-59
O-ring
HYDRO-PRO-Z19-32-POS-10
Pillar
HYDRO-PRO-Z19-32-POS-53
Pipe (4-way valve to Evaporator)
HYDRO-PRO-Z19-32-POS-44
Pipe (Filter to Liquid reservoir)
HYDRO-PRO-Z19-32-POS-51
Pipe (from heat exchanger to Filter)
HYDRO-PRO-Z19-32-POS-52
Pipe (Liquid reservoir to EEV)
702060
Pipe temperature sensor TH2 plug (6x4)
0121241
Plug PP 1/2" male thread 10bar black
7025310
Pressure gauge 0-65bar R32
HYDRO-PRO-Z19-32-POS-66
Red rubber ring
HYDRO-PRO-Z19-32-POS-36
Right panel
HYDRO-PRO-Z19-32-POS-39
Rubber sealing block
HYDRO-PRO-Z19-32-POS-64
Sealing ring for water flow switch
HYDRO-PRO-Z19-32-POS-9
Spacer
HYDRO-PRO-Z19-32-POS-31
Terminal board
HYDRO-PRO-Z19-32-POS-34
Terminal cover
7025165
Titanium heat exchanger Z19/32
HYDRO-PRO-Z19-32-POS-1
Top cover
702059
Top cover temperature sensor TH1 plug (6x4)
HYDRO-PRO-Z19-32-POS-35
T-seal terminal
HYDRO-PRO-Z19-32-POS-11
Upper frame
HYDRO-PRO-Z19-32-POS-6
Water casing pipe
7014126
Water connection set 50mm compression type ECO & Flotide
7020257
Water flow switch VH-2 plug (9x27mm)
7020261
Water inlet temperature sensor TH3 plug (6x4)
7020263
Water in temperature sensor TH6 plug (6x4)
7020262
Water out temperature sensor TH5 plug (6x4)
HYDRO-PRO-Z19-32-POS-57
Water temperature sensor T5
