XP35DCSI
Heat Pump, Type Inverter
- Categorie:
- Warmtepompen
De Norsup XP35DCSI is een inverter-warmtepompunit die geschikt is voor verwarming van zwembaden en spa's met een gemiddelde omvang. Dit onderdeel behoort tot de Heat Pump serie en werkt energiezuinig door middel van invertortechnologie. De eenheid is bedoeld als vervangingsonderdeel voor bestaande warmtepompen en zorgt voor stabiele temperatuurregeling.

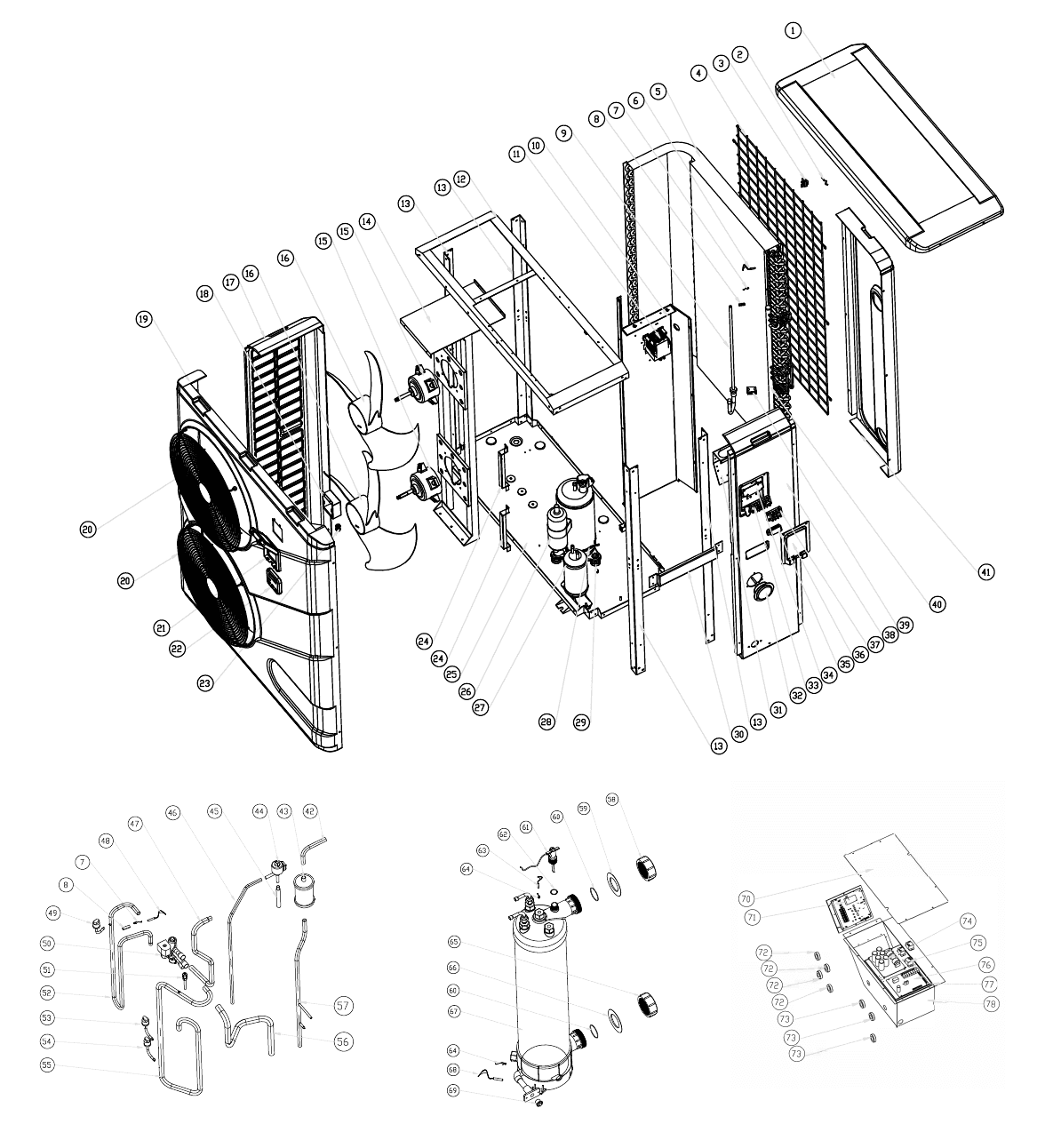

Explosietekeningen
Klik op een tekening om alle onderdelen interactief te bekijken.
Onderdelen voor Norsup XP35DCSI
77 gedocumenteerde onderdelen voor dit model.
7020261
4-way valve
XP35DCSI-POS-50
4-way valve
XP35DCSI-POS-56
4-way valve to collective piping
XP35DCSI-POS-47
4-way valve to exchanger
XP35DCSI-POS-3
Ambient temperature sensor clip
XP35DCSI-POS-55
Back gas piping
XP35DCSI-POS-4
Back grid
7020260
Back grid
XP35DCSI-POS-25
Base tray
XP35DCSI-POS-59
Blue rubber ring
XP35DCSI-POS-10
Bracket
XP35DCSI-POS-6
Coil
XP35DCSI-POS-26
Compressor
XP35DCSI-POS-28
Compressor Heating belt
XP35DCSI-POS-8
Condensate distribution piping
XP35DCSI-POS-31
Control panel
XP35DCSI-POS-44
EEV
XP35DCSI-POS-45
EEV to distribution piping
XP35DCSI-POS-78
Electric box
XP35DCSI-POS-70
Electric box cover
XP35DCSI-POS-39
Electric wiring block
7020263
Exchanger titanium spiral 35kW
XP35DCSI-POS-42
Exchanger to filter
XP35DCSI-POS-12
Fan
7021815
Fan blade 496mm x 150mm, 12mm hole anticlockwise
XP35DCSI-POS-13
Fan motor bracket
7021812
Fan motor ZKFN-78D028 120W
XP35DCSI-POS-43
Filter
XP35DCSI-POS-57
Filter to reservoir
XP35DCSI-POS-27
Filter to reservoir
7014153
Filter to reservoir
XP35DCSI-POS-19
Front grill
XP35DCSI-POS-18
Front panel
XP35DCSI-POS-77
Fuse
XP35DCSI-POS-30
Handholder bracket
XP35DCSI-POS-2
Inlet temperature sensor TH1 plug (6x4)
XP35DCSI-POS-9
Isolation panel
7021200
LED control board SHH-0202XM3011
7021824
LED display inverter SHH-LEDV2XM3101
7010543
LED sensor display box
XP35DCSI-POS-16
Left side panel
7024791
Low pressure switch 0.1 - 0.3Mpa
7024792
Low pressure switch 0.2 - 0.1Mpa
XP35DCSI-POS-72
Magnet ring
7021823
Manifold heat exchanger
7020262
Manometer Exchanger
XP35DCSI-POS-24
Panel bracket
XP35DCSI-POS-76
PC Board SHZKA0101
7021837
PC Board SHZKA101
01121241
Pipe for TH5 sensor thread 10bar black
XP35DCSI-POS-40
Piping
XP35DCSI-POS-37
Power cable 3-seat terminal
7010518
Pressure gauge
XP35DCSI-POS-52
Pressure port
XP35DCSI-POS-66
Red rubber ring
7010519
Relay 24V DC / K9B-25S/D (220-240 AC)
XP35DCSI-POS-46
Reservoir to EEV
XP35DCSI-POS-38
Right panel
XP35DCSI-POS-29
Rubber ring damping feet
XP35DCSI-POS-62
Rubber ring for water flow switch
XP35DCSI-POS-7
Sensor casing pipe
XP35DCSI-POS-41
Side panel
7024793
Suction valve
XP35DCSI-POS-51
Suction valve
XP35DCSI-POS-35
Terminal panel
XP35DCSI-POS-34
Terminal panel bracket
XP35DCSI-POS-73
Terminal strip
7020259
Top Cover
XP35DCSI-POS-11
Top Frame
7021838
Transformer SHQ05101
7020257
Water flow switch VH-2 plug (9x27mm)
XP35DCSI-POS-64
Water in temperature sensor clip 1/8
XP35DCSI-POS-33
Water switch in position
XP35DCSI-POS-60
Watertight connection sealing ring
XP35DCSI-POS-23
Wire connection
XP35DCSI-POS-17
Wiring box
XP35DCSI-POS-36
Wiring cover
